Introduction

The Energiency API allows to access and manipulate data from the Energiency solution. This API is organized around REST. Our API has predictable, resource-oriented URLs, and uses HTTP response codes to indicate API errors. We use built-in HTTP features, like HTTP authentication and HTTP verbs, which are understood by off-the-shelf HTTP clients.

Authentication

REST API endpoints require authentication, and return information that depends on your identity.

To authenticate your request, you will need to provide an authentication token. There a few different ways to get a token: you can create an API key, or generate a temporary JWT token.

API keys (recommended)

The simplest way to authenticate requests is to use an API key. An API key is a token with an unlimited duration, associated with a client platform.

You need to create an API key in the app, and then authenticate with it via apiKey header: apiKey: my_api_key.

Create an API key

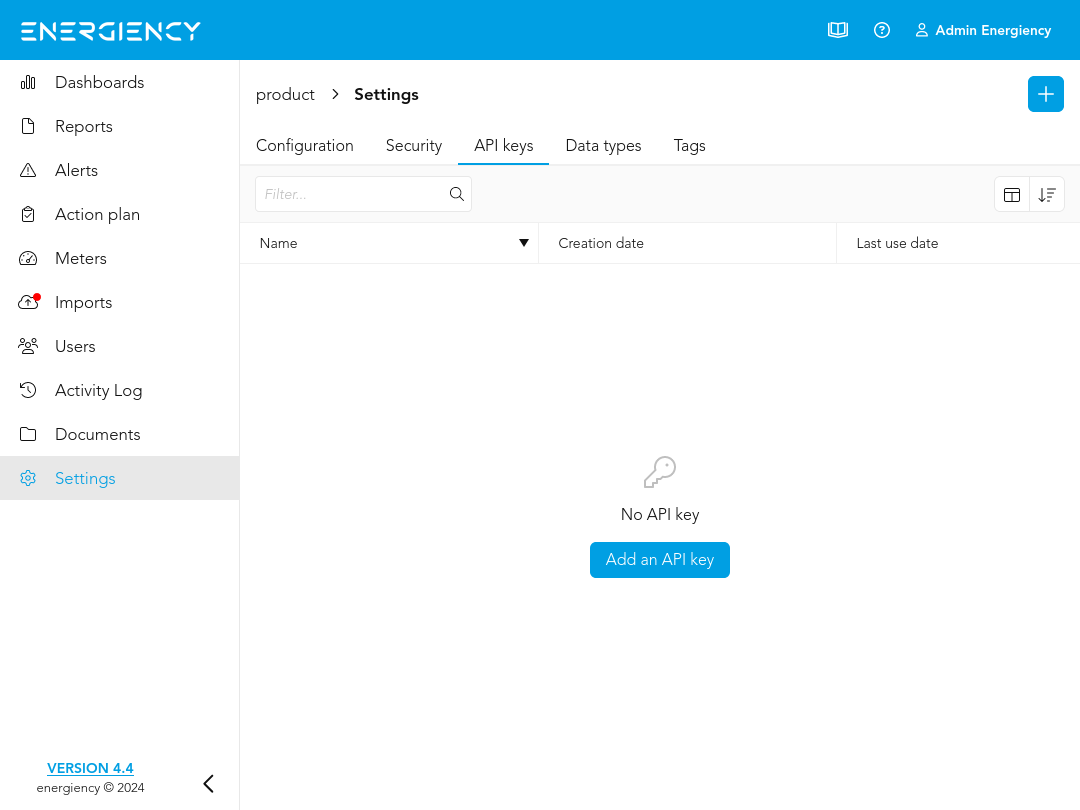

As administrator, go to the Settings page in the app, and go to the API keys tab:

• Click on the Add an API key button
• In the Add an API key page, type a Name, and validate by clicking on on Add
• Copy the key that was just generated by clicking on Copy

To authorize a request, use this code:

curl "api_endpoint_here" \
  -H "apiKey: my_api_key"

Make sure to replace my_api_key with your access token.

JWT tokens

Energiency API uses JWT (JSON Web Token) to allow access to the API.

You need to obtain an access token, and then authenticate with it via bearer auth: Authorization: Bearer my_access_token.

Get an Access Token

To get an API access token, use this code:

curl --url "https://*.energiency.fr/api/timeseries/v2/auth" \
  --request POST \
  --header 'Content-Type: application/json' \
  --data '{
    "username": "my_username",
    "password": "my_password",
    "customerCode": "my_customer_code"
  }'

This command returns JSON structured like this:

{
    "token": "my_access_token"
}

To authorize a request, use this code:

curl "api_endpoint_here" \
  -H "Authorization: Bearer my_access_token"

Make sure to replace my_access_token with your access token.

HTTP Request

POST https://*.energiency.fr/api/timeseries/v2/auth

Body Parameters

Parameter	Default	Description
username		User login
password		User password
customerCode		Customer code

Refresh an Access Token

To refresh an API access token, use this code:

curl --url "https://*.energiency.fr/timeseries/v2/refreshToken" \
  --request GET \
  --header 'Authorization: Bearer my_access_token'

This command returns JSON structured like this:

{
    "token": "my_new_access_token"
}

HTTP Request

GET https://*.energiency.fr/api/timeseries/v2/refreshToken

API Parameters

Pagination

Here is an example with _perPage=100:

curl -X GET \
  --url 'http://*.energiency.fr/api/timeseries/v2/my_customer/meters?_perPage=10' \
  --header 'Authorization: Bearer my_access_token'

Here, we return at most 10 items. Since we didn't specify any _page, the first 10 items are returned. We can retrieve the next 10 items with _page=2:

curl -X GET \
  --url 'http://*.energiency.fr/api/timeseries/v2/my_customer/meters?_perPage=10&_page=2' \
  --header 'Authorization: Bearer my_access_token'

A lot of the time, when you're making calls to the Energiency REST API, there'll be a lot of results to return. That's why you may need to paginate results with _page and _perPage query parameters.

How do I know if there are more pages?

Responses to GET operations contain an X-Items-Count header which indicates the total number of items. Thus, if the value of X-Items-Count is greater than _page x _perPage, it means that there are more pages.

Filters

Find meters whose source ID is exactly buTmCCCPuisActUv:

curl -X GET \
  --url 'http://*.energiency.fr/api/timeseries/v2/my_customer/meters?sourceId=buTmCCCPuisActUv' \
  --header 'Authorization: Bearer my_access_token'

Find all meters whose name contains elec:

curl -X GET \
  --url 'http://*.energiency.fr/api/timeseries/v2/my_customer/meters?name_contains=elec' \
  --header 'Authorization: Bearer my_access_token'

Find all virtual meters whose timestep is PT10M (10 minutes) or PT1M (1 minute):

curl -X GET \
  --url 'http://*.energiency.fr/api/timeseries/v2/my_customer/meters?timestep_in=PT10M,PT1M&virtual=true' \
  --header 'Authorization: Bearer my_access_token'

Special query parameters allow to filter items returned by GET operations:

Filter	Description
No suffix or eq	Equal
neq	Not equal
lt	Less than
gt	Greater than
lte	Less than or equal to
gte	Greater than or equal to
in	Included in an array
nin	Not included in an array
contains	Contains
ncontains	Doesn't contain
containss	Contains, case sensitive
ncontainss	Doesn't contain, case sensitive
includes	Includes
includes_any	Includes any in an array
includes_all	Includes all in an array
null	Is null
nnull	Is not null

Fields

curl -X GET \
  --url 'http://*.energiency.fr/api/timeseries/v2/my_customer/meters?_fields=id,timestep' \
  --header 'Authorization: Bearer my_access_token'

This command returns JSON structured like this:

[
	{
		"id": "54d100f5-0bda-421b-b1a0-f4a80d909ce4",
		"timestep": "PT10M"
	},
	{
		"id": "5534fb5a-0bda-4213-b86b-168a3f3a7ce6",
		"timestep": "PT10M"
	},
    ...
]

You can select only some fields to return in responses with the _fields query parameter.

Sort

Sort ascending meters by name:

curl -X GET \
  --url 'http://*.energiency.fr/api/timeseries/v2/my_customer/meters?_sort=name%3Aasc' \
  --header 'Authorization: Bearer my_access_token'

You can sort returned items according to a specific field with the _sort query parameter.

• _sort=field:asc sort in ascending order
• _sort=field:desc sort in descending order

Errors

The Energiency API uses the following error codes:

Error Code	Meaning
400	Bad Request -- Your request is wrongly formatted.
401	Unauthorized -- Your API key is wrong.
403	Forbidden -- The resource requested is hidden for administrators only.
404	Not Found -- The specified resource could not be found.
405	Method Not Allowed -- You tried to access a resource with an invalid method.
500	Internal Server Error -- We had a problem with our server. Try again later.
503	Service Unavailable -- We're temporarily offline for maintenance. Please try again later.

Imports

Imports allow data to be added to the application

Delete data

curl -X DELETE https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports?endDate=2024-07-08T13%3A12%3A01Z&meterId=string&startDate=2024-07-08T13%3A12%3A01Z \
  -H 'apiKey: API_KEY'

Delete all the data of a given meter between two dates

HTTP Request

DELETE https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
endDate	query	string(date-time)	Yes	End date to delete Timeseries (as ISO8601) (excluded)
meterId	query	string	Yes	The meter
startDate	query	string(date-time)	Yes	Start date to delete Timeseries (as ISO8601) (included)

Responses

Status	Meaning	Description	Schema
204	No Content	Ok	None

Get imports

curl -X GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports \
  -H 'Accept: */*' \
  -H 'apiKey: API_KEY'

Retrieves imports grouped by x-import-id

HTTP Request

GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
_fields	query	string	No	Allow to return only certain properties
_sort	query	string	No	Allow to sort by a certain properties
_page	query	number	No	The index of the page to load. To use for paginate results.
_perPage	query	number	No	The number of items per page. To use for paginate results.

Example responses

200 Response

Responses

Status	Meaning	Description	Schema
200	OK	imports	Inline

Response Schema

Status Code 200

Name	Type	Required	Description
anonymous	[allOf]	false	No description

allOf

Name	Type	Required	Description
» anonymous	Id	false	No description
»» id	string(uuid)	false	ID defined by Energiency

and

Name	Type	Required	Description
» anonymous	object	false	No description
»» count	number	false	The number of imported points
»» endDate	string(date-time)	false	The endDate of the import
»» firstDate	string(date-time)	false	The date of the first imported point
»» lastDate	string(date-time)	false	The date of the last imported point
»» name	string	false	The name of the import group
»» startDate	string(date-time)	false	The startDate of the import
»» meters	object	false	The number of imported points by meter's id
»»» additionalProperties	any	false	No description

undefined

Import data

curl -X POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'x-import-id: string' \
  -H 'x-import-name: ' \
  -H 'x-meters-aggregation-policy: string' \
  -H 'x-meters-parent-id: string' \
  -H 'x-meters-quantity-type: string' \
  -H 'x-meters-timestep: string' \
  -H 'apiKey: API_KEY'

Upsert data. Used for data import/reimport. Uses sourceId, allows duplicates quietly, creates unknown meter quietly. Content can be an XLSX file

HTTP Request

POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports

[
  {}
]

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
dryRun	query	string	No	If present, a dry run of the import will be done, when importing a XLSX file. The import will not be done effectively then, but informations about the points to imported will be returned.
timezone	query	string	No	Timezone used to read dates when importing a XLSX file.
x-import-id	header	string	No	A key to identify the Import batch and merge it in the Imports page (default: [name]_[timestamp of the start of the hour] )
x-import-name	header	string	No	The import label in the Imports page
x-meters-aggregation-policy	header	string	No	Default value for the aggregationPolicy of the meters created by the import
x-meters-parent-id	header	string	No	Default value for the parentId of the meters created by the import
x-meters-quantity-type	header	string	No	Default value for the quantityType of the meters created by the import
x-meters-timestep	header	string	No	Default value for the timestep of the meters created by the import
body	body	ImportParams	Yes	Data to upsert (limited to 10MB / 50MB for xlsx)

Detailed descriptions

dryRun: If present, a dry run of the import will be done, when importing a XLSX file. The import will not be done effectively then, but informations about the points to imported will be returned.

Example responses

200 Response

[
  {
    "level": "info",
    "message": "string"
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	XLSX file correctly imported, with eventually ignored sheets because of internal errors	ImportStatusMessages
204	No Content	ok	None

Get the import file template

curl -X GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports/file-template \
  -H 'Accept: application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' \
  -H 'apiKey: API_KEY'

Get the import file template according to the customer code

HTTP Request

GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports/file-template

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode

Example responses

200 Response

Responses

Status	Meaning	Description	Schema
200	OK	XLSX file of the import file template	string

Get import

curl -X GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports/{id} \
  -H 'Accept: */*' \
  -H 'apiKey: API_KEY'

This endpoint retrieves a given import

HTTP Request

GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/imports/{id}

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
id	path	string(uuid)	Yes	The ID of the element to access

Example responses

200 Response

Responses

Status	Meaning	Description	Schema
200	OK	import	Import

Perimeter

The perimeter is a tree structure where meters are organized

Get all meters

curl -X GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

This endpoint returns the list of meters

HTTP Request

GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
_fields	query	string	No	Allow to return only certain properties
_sort	query	string	No	Allow to sort by a certain properties
_page	query	number	No	The index of the page to load. To use for paginate results.
_perPage	query	number	No	The number of items per page. To use for paginate results.

Example responses

200 Response

[
  {
    "siteId": "string",
    "tags": {
      "property1": {
        "id": "string",
        "name": "string",
        "categoryName": "string",
        "color": "string",
        "description": "string"
      },
      "property2": {
        "id": "string",
        "name": "string",
        "categoryName": "string",
        "color": "string",
        "description": "string"
      }
    },
    "id": "string",
    "description": null,
    "parentId": null,
    "icon": "speedometer",
    "sourceId": null,
    "dataType": null,
    "missingPolicy": null,
    "offset": "PT0H",
    "shift": "PT0H",
    "relation": null,
    "source": null,
    "responsibleSector": null,
    "formulaResponsible": null,
    "responsible": null,
    "billing": null,
    "color": null,
    "lowerBound": null,
    "upperBound": null,
    "aggregationPolicy": "avg",
    "name": "string",
    "quantityType": "numeric",
    "timestep": "P0D",
    "unit": null,
    "virtual": null,
    "tagIds": [
      "string"
    ],
    "creationDate": "2024-07-08T13:12:01Z",
    "creationUserId": "string",
    "modificationDate": null,
    "modificationUserId": null,
    "isAuthor": null,
    "role": null
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	List of meters	Inline

Response Schema

Status Code 200

Name	Type	Required	Description
anonymous	[allOf]	false	No description

allOf

Name	Type	Required	Description
» anonymous	object	false	No description
»» siteId	string(uuid)	false	ID of the site
»» tags	object	false	Map of tags attached to meter by id
»»» additionalProperties	TagRef	false	No description
»»»» id	string(uuid)	false	No description
»»»» name	string	false	No description
»»»» categoryName	string	false	No description
»»»» color	string	false	No description
»»»» description	string	false	No description

and

Name	Type	Required	Description
»»» anonymous	Id	false	No description
»»»» id	string(uuid)	false	ID defined by Energiency

and

Name	Type	Required	Description
»»» anonymous	any	false	For required param see MeterParamRequired

allOf

Name	Type	Required	Description
»»»» anonymous	object	false	No description
»»»»» description	string,null	false	No description
»»»»» parentId	string,null(uuid)	false	ID of the parent element (if null, the meter will be put at the root of the perimeter). Can only be null, or the ID of a Folder element, or the ID of a Site element.
»»»»» icon	string,null	false	Icon used to display this meter in the Meters UI
»»»»» sourceId	string,null	false	Source ID of the meter. This identifier can be defined by the user to link a meter to an external data source.
»»»»» dataType	string,null(uuid)	false	ID of the data type
»»»»» missingPolicy	string,null	false	Strategy used for filling missing data
»»»»» offset	string,null	false	Offset of the meter
»»»»» shift	string,null	false	Shift of the meter
»»»»» relation	string,null	false	Relation of the virtual meter
»»»»» source	string,null	false	No description
»»»»» responsibleSector	string,null	false	No description
»»»»» formulaResponsible	string,null	false	No description
»»»»» responsible	string,null	false	No description
»»»»» billing	string,null	false	No description
»»»»» color	string,null	false	Meter's color
»»»»» lowerBound	number,null	false	The lower bound used to crop data values (bound value included)
»»»»» upperBound	number,null	false	The upper bound used to crop data values (bound value included)

and

Name	Type	Required	Description
»»»» anonymous	any	false	No description

and

Name	Type	Required	Description
»»»» anonymous	MeterParamBase	false	No description
»»»»» aggregationPolicy	string	false	Aggregation operator
»»»»» name	string	false	Name of the meter
»»»»» quantityType	string	false	Type of values in meter data
»»»»» timestep	ExportTimestep	false	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
»»»»» unit	string,null	false	Unit symbol included in the data type
»»»»» virtual	boolean,null	false	Whether this is a virtual meter
»»»»» tagIds	[string]	false	Id of tags attached to this meter

and

Name	Type	Required	Description
»»»» anonymous	MeterParamRequired	false	Meter's required param

and

Name	Type	Required	Description
»»»» anonymous	HistoricalObject	false	No description
»»»»» creationDate	string(date-time)	false	Date and time (ISO 8601 format) when it was created
»»»»» creationUserId	string	false	ID of the user who created
»»»»» modificationDate	string,null(date-time)	false	Date and time (ISO 8601 format) of the last change
»»»»» modificationUserId	string,null	false	ID of the user who did the last change

and

Name	Type	Required	Description
»»»» anonymous	any	false	No description

allOf

Name	Type	Required	Description
»»»»» anonymous	object	false	No description
»»»»»» isAuthor	boolean,null	false	Whether the resource has been created by the user calling the API, if new users management is enabled

and

Name	Type	Required	Description
»»»»» anonymous	AccessRole	false	No description
»»»»»» role	string,null	false	Read/write access given on the resource, if new users management is enabled

Enumerated Values

Property	Value
aggregationPolicy	avg
aggregationPolicy	sum
aggregationPolicy	median
aggregationPolicy	min
aggregationPolicy	max
aggregationPolicy	count
role	null
role	read
role	write

undefined

Create a meter

curl -X POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Create a new meter in the perimeter

HTTP Request

POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode

Example responses

201 Response

{
  "siteId": "string",
  "tags": {
    "property1": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    },
    "property2": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    }
  },
  "id": "string",
  "description": null,
  "parentId": null,
  "icon": "speedometer",
  "sourceId": null,
  "dataType": null,
  "missingPolicy": null,
  "offset": "PT0H",
  "shift": "PT0H",
  "relation": null,
  "source": null,
  "responsibleSector": null,
  "formulaResponsible": null,
  "responsible": null,
  "billing": null,
  "color": null,
  "lowerBound": null,
  "upperBound": null,
  "aggregationPolicy": "avg",
  "name": "string",
  "quantityType": "numeric",
  "timestep": "P0D",
  "unit": null,
  "virtual": null,
  "tagIds": [
    "string"
  ],
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "isAuthor": null,
  "role": null
}

Responses

Status	Meaning	Description	Schema
201	Created	Created meter	Meter

Patch meters

curl -X PATCH https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Update a partial meter or a list of meter

HTTP Request

PATCH https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
id	query	string(uuid)	No	meter's id to patch
id_eq	query	string(uuid)	No	meter's id to patch
id_in	query	string	No	list of meter's id to patch split by ','

Example responses

200 Response

[
  {
    "siteId": "string",
    "tags": {
      "property1": {
        "id": "string",
        "name": "string",
        "categoryName": "string",
        "color": "string",
        "description": "string"
      },
      "property2": {
        "id": "string",
        "name": "string",
        "categoryName": "string",
        "color": "string",
        "description": "string"
      }
    },
    "id": "string",
    "description": null,
    "parentId": null,
    "icon": "speedometer",
    "sourceId": null,
    "dataType": null,
    "missingPolicy": null,
    "offset": "PT0H",
    "shift": "PT0H",
    "relation": null,
    "source": null,
    "responsibleSector": null,
    "formulaResponsible": null,
    "responsible": null,
    "billing": null,
    "color": null,
    "lowerBound": null,
    "upperBound": null,
    "aggregationPolicy": "avg",
    "name": "string",
    "quantityType": "numeric",
    "timestep": "P0D",
    "unit": null,
    "virtual": null,
    "tagIds": [
      "string"
    ],
    "creationDate": "2024-07-08T13:12:01Z",
    "creationUserId": "string",
    "modificationDate": null,
    "modificationUserId": null,
    "isAuthor": null,
    "role": null
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	Updated meters	Inline

Response Schema

Status Code 200

Name	Type	Required	Description
anonymous	[allOf]	false	No description

allOf

Name	Type	Required	Description
» anonymous	object	false	No description
»» siteId	string(uuid)	false	ID of the site
»» tags	object	false	Map of tags attached to meter by id
»»» additionalProperties	TagRef	false	No description
»»»» id	string(uuid)	false	No description
»»»» name	string	false	No description
»»»» categoryName	string	false	No description
»»»» color	string	false	No description
»»»» description	string	false	No description

and

Name	Type	Required	Description
»»» anonymous	Id	false	No description
»»»» id	string(uuid)	false	ID defined by Energiency

and

Name	Type	Required	Description
»»» anonymous	any	false	For required param see MeterParamRequired

allOf

Name	Type	Required	Description
»»»» anonymous	object	false	No description
»»»»» description	string,null	false	No description
»»»»» parentId	string,null(uuid)	false	ID of the parent element (if null, the meter will be put at the root of the perimeter). Can only be null, or the ID of a Folder element, or the ID of a Site element.
»»»»» icon	string,null	false	Icon used to display this meter in the Meters UI
»»»»» sourceId	string,null	false	Source ID of the meter. This identifier can be defined by the user to link a meter to an external data source.
»»»»» dataType	string,null(uuid)	false	ID of the data type
»»»»» missingPolicy	string,null	false	Strategy used for filling missing data
»»»»» offset	string,null	false	Offset of the meter
»»»»» shift	string,null	false	Shift of the meter
»»»»» relation	string,null	false	Relation of the virtual meter
»»»»» source	string,null	false	No description
»»»»» responsibleSector	string,null	false	No description
»»»»» formulaResponsible	string,null	false	No description
»»»»» responsible	string,null	false	No description
»»»»» billing	string,null	false	No description
»»»»» color	string,null	false	Meter's color
»»»»» lowerBound	number,null	false	The lower bound used to crop data values (bound value included)
»»»»» upperBound	number,null	false	The upper bound used to crop data values (bound value included)

and

Name	Type	Required	Description
»»»» anonymous	any	false	No description

and

Name	Type	Required	Description
»»»» anonymous	MeterParamBase	false	No description
»»»»» aggregationPolicy	string	false	Aggregation operator
»»»»» name	string	false	Name of the meter
»»»»» quantityType	string	false	Type of values in meter data
»»»»» timestep	ExportTimestep	false	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
»»»»» unit	string,null	false	Unit symbol included in the data type
»»»»» virtual	boolean,null	false	Whether this is a virtual meter
»»»»» tagIds	[string]	false	Id of tags attached to this meter

and

Name	Type	Required	Description
»»»» anonymous	MeterParamRequired	false	Meter's required param

and

Name	Type	Required	Description
»»»» anonymous	HistoricalObject	false	No description
»»»»» creationDate	string(date-time)	false	Date and time (ISO 8601 format) when it was created
»»»»» creationUserId	string	false	ID of the user who created
»»»»» modificationDate	string,null(date-time)	false	Date and time (ISO 8601 format) of the last change
»»»»» modificationUserId	string,null	false	ID of the user who did the last change

and

Name	Type	Required	Description
»»»» anonymous	any	false	No description

allOf

Name	Type	Required	Description
»»»»» anonymous	object	false	No description
»»»»»» isAuthor	boolean,null	false	Whether the resource has been created by the user calling the API, if new users management is enabled

and

Name	Type	Required	Description
»»»»» anonymous	AccessRole	false	No description
»»»»»» role	string,null	false	Read/write access given on the resource, if new users management is enabled

Enumerated Values

Property	Value
aggregationPolicy	avg
aggregationPolicy	sum
aggregationPolicy	median
aggregationPolicy	min
aggregationPolicy	max
aggregationPolicy	count
role	null
role	read
role	write

undefined

Delete a meter

curl -X DELETE https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters/{id} \
  -H 'apiKey: API_KEY'

Delete an existing meter in the perimeter

HTTP Request

DELETE https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters/{id}

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
id	path	string(uuid)	Yes	The ID of the element to access

Responses

Status	Meaning	Description	Schema
204	No Content	The meter has been successsfully deleted	None

Get a meter

curl -X GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters/{id} \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

This endpoint returns a single meter

HTTP Request

GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters/{id}

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
id	path	string(uuid)	Yes	The ID of the element to access

Example responses

200 Response

{
  "siteId": "string",
  "tags": {
    "property1": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    },
    "property2": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    }
  },
  "id": "string",
  "description": null,
  "parentId": null,
  "icon": "speedometer",
  "sourceId": null,
  "dataType": null,
  "missingPolicy": null,
  "offset": "PT0H",
  "shift": "PT0H",
  "relation": null,
  "source": null,
  "responsibleSector": null,
  "formulaResponsible": null,
  "responsible": null,
  "billing": null,
  "color": null,
  "lowerBound": null,
  "upperBound": null,
  "aggregationPolicy": "avg",
  "name": "string",
  "quantityType": "numeric",
  "timestep": "P0D",
  "unit": null,
  "virtual": null,
  "tagIds": [
    "string"
  ],
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "isAuthor": null,
  "role": null
}

Responses

Status	Meaning	Description	Schema
200	OK	Meter data	Meter

Update a meter

curl -X PUT https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters/{id} \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Update an existing meter in the perimeter

HTTP Request

PUT https://*.energiency.fr/api/timeseries/v2/{customerCode}/meters/{id}

{
  "description": null,
  "parentId": null,
  "icon": "speedometer",
  "sourceId": null,
  "dataType": null,
  "missingPolicy": null,
  "offset": "PT0H",
  "shift": "PT0H",
  "relation": null,
  "source": null,
  "responsibleSector": null,
  "formulaResponsible": null,
  "responsible": null,
  "billing": null,
  "color": null,
  "lowerBound": null,
  "upperBound": null,
  "aggregationPolicy": "avg",
  "name": "string",
  "quantityType": "numeric",
  "timestep": "P0D",
  "unit": null,
  "virtual": null,
  "tagIds": [
    "string"
  ]
}

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
id	path	string(uuid)	Yes	The ID of the element to access
body	body	any	Yes	Data of the meter

Example responses

200 Response

{
  "siteId": "string",
  "tags": {
    "property1": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    },
    "property2": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    }
  },
  "id": "string",
  "description": null,
  "parentId": null,
  "icon": "speedometer",
  "sourceId": null,
  "dataType": null,
  "missingPolicy": null,
  "offset": "PT0H",
  "shift": "PT0H",
  "relation": null,
  "source": null,
  "responsibleSector": null,
  "formulaResponsible": null,
  "responsible": null,
  "billing": null,
  "color": null,
  "lowerBound": null,
  "upperBound": null,
  "aggregationPolicy": "avg",
  "name": "string",
  "quantityType": "numeric",
  "timestep": "P0D",
  "unit": null,
  "virtual": null,
  "tagIds": [
    "string"
  ],
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "isAuthor": null,
  "role": null
}

Responses

Status	Meaning	Description	Schema
200	OK	Updated meter	Meter

Get perimeter

curl -X GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/perimeter \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

This endpoint returns all items of the perimeter (folders, meters, sites)

HTTP Request

GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/perimeter

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode

Example responses

200 Response

[
  {
    "type": "site",
    "id": "string",
    "description": null,
    "location": null,
    "name": "string",
    "timezone": "string",
    "access": null,
    "creationDate": "2024-07-08T13:12:01Z",
    "creationUserId": "string",
    "modificationDate": null,
    "modificationUserId": null,
    "isAuthor": null,
    "role": null
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	List of perimeter items	Perimeter

Update perimeter

curl -X PUT https://*.energiency.fr/api/timeseries/v2/{customerCode}/perimeter \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Update several items of the perimeter (sites, folder and meters)

HTTP Request

PUT https://*.energiency.fr/api/timeseries/v2/{customerCode}/perimeter

[
  {
    "type": "site",
    "description": null,
    "location": null,
    "name": "string",
    "timezone": "string",
    "access": null,
    "id": "string"
  }
]

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
body	body	PerimeterParam	No	Data of the perimeter's items

Example responses

200 Response

[
  {
    "type": "site",
    "id": "string",
    "description": null,
    "location": null,
    "name": "string",
    "timezone": "string",
    "access": null,
    "creationDate": "2024-07-08T13:12:01Z",
    "creationUserId": "string",
    "modificationDate": null,
    "modificationUserId": null,
    "isAuthor": null,
    "role": null
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	List of perimeter items	Perimeter

Check relation

curl -X POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/relation \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Check relation

HTTP Request

POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/relation

{
  "meterId": "string",
  "relation": "string"
}

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
body	body	RelationValidationParam	Yes	relation to check
» meterId	body	string	No	The ID of the meter having this relation
» relation	body	string	Yes	The relation to check

Example responses

200 Response

{
  "errors": [
    {
      "message": "string",
      "type": "string"
    }
  ],
  "success": true,
  "warnings": [
    {
      "deprecation": "string",
      "message": "string",
      "replacement": "string",
      "type": "string"
    }
  ]
}

Responses

Status	Meaning	Description	Schema
200	OK	The validation result	RelationValidationResult

Timeseries

Timeseries allows you to have a set of data over a given period of time

Delete Timeseries

curl -X DELETE https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries \
  -H 'Content-Type: application/json' \
  -H 'apiKey: API_KEY'

Delete several timeseries on several meters

HTTP Request

DELETE https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries

[
  {
    "date": "2024-07-08T13:12:01Z",
    "meterId": "string"
  }
]

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
date_gt	query	string(date-time)	No	Start date to delete Timeseries (as ISO8601) (excluded)
date_gte	query	string(date-time)	No	Start date to delete Timeseries (as ISO8601) (included)
date_lt	query	string(date-time)	No	End date to delete Timeseries (as ISO8601) (excluded)
date_lte	query	string(date-time)	No	End date to delete Timeseries (as ISO8601) (included)
endDate	query	string(date-time)	No	End date to delete Timeseries (as ISO8601) (included)
meterId	query	string	No	define a meterId
meterId_eq	query	string	No	define a meterId
meterId_in	query	string	No	define several meterIds
purge	query	boolean	No	true if you want to delete timeseries (only for root user)
startDate	query	string(date-time)	No	Start date to delete Timeseries (as ISO8601) (included)
body	body	TimeseriesDataParamForDeletion	No	Timeseries Data to delete (body is optionnal if startDate and endDate are defined)

Responses

Status	Meaning	Description	Schema
204	No Content	Nothing is returned	None

Get all timeseries

curl -X GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Get all timeseries from a meter

HTTP Request

GET https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
_page	query	number	No	The index of the page to load. To use for paginate results.
_perPage	query	number	No	The number of items per page. To use for paginate results.
_detail	query	boolean	No	Activate the detail view of a resource
_sort	query	string	No	Allow to sort by a certain properties
_fields	query	string	No	Allow to return only certain properties
date_gt	query	string(date-time)	No	Start date to get Timeseries (as ISO8601) (excluded)
date_gte	query	string(date-time)	No	Start date to get Timeseries (as ISO8601) (included)
date_lt	query	string(date-time)	No	End date to get Timeseries (as ISO8601) (excluded)
date_lte	query	string(date-time)	No	End date to get Timeseries (as ISO8601) (included)
meterId	query	string	No	define a meterId
meterId_eq	query	string	No	define a meterId
meterId_in	query	string	No	define several meterIds
timezone	query	string	No	Output data will be converted to this timezone

Example responses

200 Response

{
  "date": "2024-07-08T13:12:01Z",
  "quantity": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	Timeseries list	Inline

Response Schema

Status Code 200

Name	Type	Required	Description

oneOf

Name	Type	Required	Description
» anonymous	TimeseriesExport	false	No description
»» date	string(date-time)	true	UTC date as ISO8601
»» quantity	any	true	Use dot as decimal separator

oneOf

Name	Type	Required	Description
»»» anonymous	number	false	No description

xor

Name	Type	Required	Description
»»» anonymous	string	false	No description

xor

Name	Type	Required	Description
»» anonymous	TimeseriesDetailExport	false	No description
»»» creationDate	string(date-time)	false	UTC date as ISO8601
»»» date	string(date-time)	false	UTC date as ISO8601
»»» deletionDate	string(date-time)	false	UTC date as ISO8601
»»» isText	boolean	false	* set to true if the imported quantity can not be converted to a numeric value. As consequence,the textQuantity field is used for alphanum meters, and this point is ignored for numeric meters. * set to null otherwise
»»» quantity	number	false	The numeric value of the point
»»» status	string	false	Status of the point: * active - The point is the point to use when requesting the data * deleted - The point has been deleted or replaced
»»» textQuantity	string	false	A text quantity

Enumerated Values

Property	Value
status	active
status	deleted

undefined

Update Timeseries

curl -X PUT https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Update several timeseries on several meters

HTTP Request

PUT https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries

[
  {
    "date": "2024-07-08T13:12:01Z",
    "meterId": "string",
    "quantity": 0
  }
]

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
body	body	array[object]	Yes	Timeseries Data to modify

Example responses

200 Response

[
  {
    "date": "2024-07-08T13:12:01Z",
    "meterId": "string",
    "quantity": 0
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	Updated Timeseries Data	Inline

Response Schema

Status Code 200

Name	Type	Required	Description
anonymous	[TimeseriesData]	false	No description
» date	string(date-time)	true	No description
» meterId	string(uuid)	true	No description
» quantity	any	true	No description

oneOf

Name	Type	Required	Description
»» anonymous	number	false	No description

xor

Name	Type	Required	Description
»» anonymous	string	false	No description

undefined

Export aggregations

curl -X POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries/aggregations \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Export several timeseries as a consolidated result

HTTP Request

POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries/aggregations

{
  "csvOptions": {
    "headers": [
      "name"
    ]
  },
  "dateRanges": [
    {
      "endDate": "2024-07-08T13:12:01Z",
      "startDate": "2024-07-08T13:12:01Z"
    }
  ],
  "groupBy": [
    "hour",
    "hour"
  ],
  "meters": [
    {
      "aggregationPolicy": "avg",
      "formula": "string",
      "id": "string",
      "name": null,
      "quantityType": "string",
      "timestep": "P0D"
    }
  ],
  "filterNullValues": false,
  "monotonous": null,
  "offset": "string",
  "timestep": "P0D",
  "timezone": "UTC"
}

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
body	body	AggregationExportParam	Yes	The export configuration
» csvOptions	body	object	No	Options of the CSV export
»» headers	body	[any]	No	List of headers to display in the CSV file
» dateRanges	body	[ExportRange]	Yes	Range date to get
»» endDate	body	string(date-time)	No	UTC date as ISO8601
»» startDate	body	string(date-time)	No	UTC date as ISO8601
» groupBy	body	any	No	No description
»» *anonymous*	body	[string]	No	No description
»» *anonymous*	body	[string]	No	No description
»» *anonymous*	body	[string]	No	No description
»» *anonymous*	body	[string]	No	No description
»» *anonymous*	body	[string]	No	No description
»» *anonymous*	body	[string]	No	No description
»» *anonymous*	body	SimpleGroupBy	No	Groups the series by month, week, hour, day of week or or day of the year
» meters	body	[oneOf]	Yes	No description
»» *anonymous*	body	FormulaExportParam	No	No description
»»» aggregationPolicy	body	string	No	Override the aggregation policy of the meter
»»» formula	body	string	Yes	Formula (Required if using formula)
»»» id	body	string(uuid)	Yes	The id of the required meter
»»» name	body	null,string	No	The name of the meter
»»» quantityType	body	string	No	Type of values in meter data
»»» timestep	body	ExportTimestep	Yes	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
»» *anonymous*	body	MeterExportParam	No	No description
»»» aggregationPolicy	body	string	No	Override the aggregation policy of the meter
»»» id	body	string(uuid)	No	The id of the required meter
»»» meterId	body	string(uuid)	No	The id of the required meter
»»» name	body	null,string	No	The name of the meter
»»» unit	body	null,string	No	The unit of the meter
»» filterNullValues	body	boolean	No	Whether filter null values
»» monotonous	body	object,null	No	No description
»»» sort	body	any	No	Sort unagregated data by ascending or descending order
»»» useRawData	body	boolean	No	Whether use the raw Data
»» offset	body	string	No	By default the first meter offset is used. This parameter overrides the first meter offset. Should be a signed ISO8601 duration (Ex: '-P1D', 'P12D')
»» timestep	body	ExportTimestep	Yes	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
»» timezone	body	string	No	Output data will be converted to this timezone

Enumerated Values

Parameter	Value
»» headers	name
»» headers	clientID
»» headers	sourceId
»» headers	unit
»» headers	timezone
»» anonymous	hour
»» anonymous	dayOfWeek
»» anonymous	hour
»» anonymous	month
»» anonymous	hour
»» anonymous	dayOfYear
»» anonymous	hour
»» anonymous	week
»» anonymous	dayOfWeek
»» anonymous	week
»» anonymous	dayOfWeek
»» anonymous	month
»» anonymous	hour
»» anonymous	week
»» anonymous	dayOfWeek
»» anonymous	dayOfYear
»» anonymous	month
»» anonymous	null
»»» aggregationPolicy	avg
»»» aggregationPolicy	count
»»» aggregationPolicy	max
»»» aggregationPolicy	min
»»» aggregationPolicy	sum
»»» aggregationPolicy	stddev
»»» aggregationPolicy	stddev_pop
»»» aggregationPolicy	stddev_samp
»»» aggregationPolicy	variance
»»» aggregationPolicy	var_pop
»»» aggregationPolicy	var_samp
»»» aggregationPolicy	median
»»» aggregationPolicy	avg
»»» aggregationPolicy	count
»»» aggregationPolicy	max
»»» aggregationPolicy	min
»»» aggregationPolicy	sum
»»» aggregationPolicy	stddev
»»» aggregationPolicy	stddev_pop
»»» aggregationPolicy	stddev_samp
»»» aggregationPolicy	variance
»»» aggregationPolicy	var_pop
»»» aggregationPolicy	var_samp
»»» aggregationPolicy	median
»»» sort	asc
»»» sort	desc
»»» sort	null

Example responses

200 Response

[
  [
    {
      "timestamp": "string",
      "property1": 0,
      "property2": 0
    }
  ]
]

Responses

Status	Meaning	Description	Schema
200	OK	Timeseries aggregations	AggregationExport

Compute the correlation matrix

curl -X POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries/correlation \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'apiKey: API_KEY'

Compute the correlation matrix

HTTP Request

POST https://*.energiency.fr/api/timeseries/v2/{customerCode}/timeseries/correlation

{
  "endDate": "2024-07-08T13:12:01Z",
  "meters": [
    {
      "aggregationPolicy": "avg",
      "formula": "string",
      "id": "string",
      "name": null,
      "quantityType": "string",
      "timestep": "P0D"
    }
  ],
  "offset": "string",
  "startDate": "2024-07-08T13:12:01Z",
  "timestep": "P0D",
  "timezone": "UTC"
}

Parameters

Parameter	In	Type	Required	Description
customerCode	path	string	Yes	The customerCode
body	body	CorrelationExportParam	Yes	Correlation Parameters
» endDate	body	string(date-time)	Yes	date time as ISO8601
» meters	body	[oneOf]	Yes	Meter ids to get
»» *anonymous*	body	FormulaExportParam	No	No description
»»» aggregationPolicy	body	string	No	Override the aggregation policy of the meter
»»» formula	body	string	Yes	Formula (Required if using formula)
»»» id	body	string(uuid)	Yes	The id of the required meter
»»» name	body	null,string	No	The name of the meter
»»» quantityType	body	string	No	Type of values in meter data
»»» timestep	body	ExportTimestep	Yes	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
»» *anonymous*	body	MeterExportParam	No	No description
»»» aggregationPolicy	body	string	No	Override the aggregation policy of the meter
»»» id	body	string(uuid)	No	The id of the required meter
»»» meterId	body	string(uuid)	No	The id of the required meter
»»» name	body	null,string	No	The name of the meter
»»» unit	body	null,string	No	The unit of the meter
»» offset	body	string	No	By default the first meter offset is used. This parameter overrides the first meter offset. Should be a signed ISO8601 duration (Ex: '-P1D', 'P12D')
»» startDate	body	string(date-time)	Yes	date time as ISO8601
»» timestep	body	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
»» timezone	body	string	No	timezone

Enumerated Values

Parameter	Value
»»» aggregationPolicy	avg
»»» aggregationPolicy	count
»»» aggregationPolicy	max
»»» aggregationPolicy	min
»»» aggregationPolicy	sum
»»» aggregationPolicy	stddev
»»» aggregationPolicy	stddev_pop
»»» aggregationPolicy	stddev_samp
»»» aggregationPolicy	variance
»»» aggregationPolicy	var_pop
»»» aggregationPolicy	var_samp
»»» aggregationPolicy	median
»»» aggregationPolicy	avg
»»» aggregationPolicy	count
»»» aggregationPolicy	max
»»» aggregationPolicy	min
»»» aggregationPolicy	sum
»»» aggregationPolicy	stddev
»»» aggregationPolicy	stddev_pop
»»» aggregationPolicy	stddev_samp
»»» aggregationPolicy	variance
»»» aggregationPolicy	var_pop
»»» aggregationPolicy	var_samp
»»» aggregationPolicy	median

Example responses

200 Response

[
  [
    0
  ]
]

Responses

Status	Meaning	Description	Schema
200	OK	The correlation matrix	CorrelationExport

Schemas

AccessAttributes

{
  "isAuthor": null,
  "role": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» isAuthor	boolean,null	No	Whether the resource has been created by the user calling the API, if new users management is enabled

and

Name	Type	Required	Description
*anonymous*	AccessRole	No	No description

AccessParam

{
  "access": null
}

Properties

Defined the access to a ressource and these sub ressources. Access keys are user's id or group's id. Access values are read to give read-only access, or write to give edit access.

Name	Type	Required	Description
access	object,null	No	No description
» **additionalProperties**	string	No	No description

Enumerated Values

Property	Value
additionalProperties	read
additionalProperties	write

AccessRole

{
  "role": null
}

Properties

Name	Type	Required	Description
role	string,null	No	Read/write access given on the resource, if new users management is enabled

Enumerated Values

Property	Value
role	null
role	read
role	write

Action

{
  "id": "string",
  "name": "string",
  "categoryName": "string",
  "color": "string",
  "description": null,
  "title": "string",
  "ownerId": "string",
  "siteId": null,
  "supervisorId": null,
  "dueDate": null,
  "startDate": null,
  "state": "NOT_STARTED",
  "progress": 0,
  "tagIds": [
    "string"
  ],
  "evaluation": null,
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "isAuthor": null,
  "role": null,
  "meterIds": [
    "string"
  ],
  "meters": {
    "property1": {
      "role": null,
      "aggregationPolicy": "avg",
      "name": "string",
      "quantityType": "numeric",
      "timestep": "P0D",
      "unit": null,
      "virtual": null,
      "tagIds": [
        "string"
      ]
    },
    "property2": {
      "role": null,
      "aggregationPolicy": "avg",
      "name": "string",
      "quantityType": "numeric",
      "timestep": "P0D",
      "unit": null,
      "virtual": null,
      "tagIds": [
        "string"
      ]
    }
  },
  "nbComments": 0,
  "nbDocuments": 0,
  "nbTasks": 0,
  "siteName": null,
  "tags": {
    "property1": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    },
    "property2": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    }
  }
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	ActionParam	No	No description

and

Name	Type	Required	Description
*anonymous*	ActionParamRequired	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
*anonymous*	AccessAttributes	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» meterIds	[string]	No	Meters' id used in the action
» meters	object	No	Map of meters attached to action by id
»» **additionalProperties**	MeterRef	No	Schema for meter reference use in action, alert and dashboard
» nbComments	number	No	No description
» nbDocuments	number	No	No description
» nbTasks	number	No	No description
» siteName	string,null	No	No description
» tags	object	No	Map of tags attached to action by id
»» **additionalProperties**	TagRef	No	No description

ActionEvaluation

{
  "type": "consumption",
  "referenceDateRange": {
    "endDate": "2024-07-08T13:12:01Z",
    "startDate": "2024-07-08T13:12:01Z"
  },
  "evaluationDateRange": {
    "endDate": "2024-07-08T13:12:01Z",
    "startDate": "2024-07-08T13:12:01Z"
  },
  "financial": {
    "investment": null,
    "conversionFormula": null
  },
  "hypothesisDescription": null,
  "timestep": "P0D",
  "consumptionFormula": "string"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» type	string	No	No description
» referenceDateRange	ExportRange	Yes	Reference period used to compare data
» evaluationDateRange	ExportRange	No	Evaluation period used to analyze performance
» financial	object	No	No description
»» investment	number,null	No	No description
»» conversionFormula	string,null	No	Convert energy consumption into money
» hypothesisDescription	string,null	No	No description
» timestep	ExportTimestep	Yes	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y

and - discriminator: type

Name	Type	Required	Description
*anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
» *anonymous*	ActionEvaluationConsumption	No	No description

xor

Name	Type	Required	Description
» *anonymous*	ActionEvaluationEnPI	No	No description

Enumerated Values

Property	Value
type	consumption
type	EnPI

ActionEvaluationConsumption

{
  "type": "consumption",
  "consumptionFormula": "string"
}

Properties

Name	Type	Required	Description
type	string	Yes	No description
consumptionFormula	string	Yes	Formula to calculate consumption

Enumerated Values

Property	Value
type	consumption

ActionEvaluationEnPI

{
  "type": "EnPI",
  "numeratorEnPIFormula": "string",
  "denominatorEnPIFormula": "string"
}

Properties

Name	Type	Required	Description
type	string	Yes	No description
numeratorEnPIFormula	string	Yes	Formula to calculate the numerator (for example a consumption)
denominatorEnPIFormula	string	Yes	Formula to calculate the demoniator related to the numerator (for example a production)

Enumerated Values

Property	Value
type	EnPI

ActionParam

{
  "id": "string",
  "name": "string",
  "categoryName": "string",
  "color": "string",
  "description": null,
  "title": "string",
  "ownerId": "string",
  "siteId": null,
  "supervisorId": null,
  "dueDate": null,
  "startDate": null,
  "state": "NOT_STARTED",
  "progress": 0,
  "tagIds": [
    "string"
  ],
  "evaluation": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	TagRef	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» title	string	No	No description
» description	string,null	No	No description
» ownerId	string	No	No description
» siteId	string,null(uuid)	No	No description
» supervisorId	string,null(uuid)	No	No description
» dueDate	string,null(date-time)	No	No description
» startDate	string,null(date-time)	No	No description
» state	string	No	No description
» progress	number	No	No description
» tagIds	[string]	No	Id of tags attached to this action
» evaluation	any	No	No description

anyOf

Name	Type	Required	Description
»» *anonymous*	null	No	No description

or

Name	Type	Required	Description
»» *anonymous*	ActionEvaluation	No	No description

Enumerated Values

Property	Value
state	NOT_STARTED
state	STARTED
state	ENDED
state	PAUSED
state	CANCELED

ActionParamRequired

{}

Properties

None

ActionStatisticsExportParam

{
  "type": "consumption",
  "consumptionFormula": "string",
  "referenceDateRange": {
    "endDate": "2024-07-08T13:12:01Z",
    "startDate": "2024-07-08T13:12:01Z"
  },
  "evolutionDateRange": {
    "endDate": "2024-07-08T13:12:01Z",
    "startDate": "2024-07-08T13:12:01Z"
  },
  "timezone": "UTC",
  "timestep": "P0D",
  "financial": {
    "investment": 0,
    "conversionFormula": null
  }
}

Properties

allOf - discriminator: type

Name	Type	Required	Description
*anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
» *anonymous*	ActionEvaluationConsumption	No	No description

xor

Name	Type	Required	Description
» *anonymous*	ActionEvaluationEnPI	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» referenceDateRange	ExportRange	No	No description
» evolutionDateRange	ExportRange	No	No description
» timezone	string	No	No description
» timestep	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
» financial	object	No	No description
»» investment	number,null	No	No description
»» conversionFormula	string,null	No	Convert energy consumption into money

AggregationExport

[
  [
    {
      "timestamp": "string",
      "property1": 0,
      "property2": 0
    }
  ]
]

Properties

None

AggregationExportParam

{
  "csvOptions": {
    "headers": [
      "name"
    ]
  },
  "dateRanges": [
    {
      "endDate": "2024-07-08T13:12:01Z",
      "startDate": "2024-07-08T13:12:01Z"
    }
  ],
  "groupBy": [
    "hour",
    "hour"
  ],
  "meters": [
    {
      "aggregationPolicy": "avg",
      "formula": "string",
      "id": "string",
      "name": null,
      "quantityType": "string",
      "timestep": "P0D"
    }
  ],
  "filterNullValues": false,
  "monotonous": null,
  "offset": "string",
  "timestep": "P0D",
  "timezone": "UTC"
}

Properties

Name	Type	Required	Description
csvOptions	object	No	Options of the CSV export
» headers	[any]	No	List of headers to display in the CSV file
dateRanges	[ExportRange]	Yes	Range date to get
groupBy	GroupBy	No	No description
meters	[oneOf]	Yes	No description

oneOf

Name	Type	Required	Description
» *anonymous*	FormulaExportParam	No	No description

xor

Name	Type	Required	Description
» *anonymous*	MeterExportParam	No	No description

continued

Name	Type	Required	Description
filterNullValues	boolean	No	Whether filter null values
monotonous	object,null	No	No description
» sort	any	No	Sort unagregated data by ascending or descending order
» useRawData	boolean	No	Whether use the raw Data
offset	string	No	By default the first meter offset is used. This parameter overrides the first meter offset. Should be a signed ISO8601 duration (Ex: '-P1D', 'P12D')
timestep	ExportTimestep	Yes	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
timezone	string	No	Output data will be converted to this timezone

Enumerated Values

Property	Value
sort	asc
sort	desc
sort	null

AggregationExportRangeData

{
  "timestamp": "string",
  "property1": 0,
  "property2": 0
}

Properties

Name	Type	Required	Description
**additionalProperties**	number(double)	No	Map of values by meterId
timestamp	string	No	No description

AlertConfiguration

{
  "id": "string",
  "timestep": "P0D",
  "name": "string",
  "creationDate": "string",
  "unit": "string",
  "message": "string",
  "formula": "string",
  "minOccurrences": 1,
  "comparator": ">",
  "threshold": 0,
  "timezone": "UTC",
  "offset": "P0D",
  "aggregationPolicy": "avg",
  "description": null,
  "meters": {
    "property1": {
      "role": null,
      "aggregationPolicy": "avg",
      "name": "string",
      "quantityType": "numeric",
      "timestep": "P0D",
      "unit": null,
      "virtual": null,
      "tagIds": [
        "string"
      ]
    },
    "property2": {
      "role": null,
      "aggregationPolicy": "avg",
      "name": "string",
      "quantityType": "numeric",
      "timestep": "P0D",
      "unit": null,
      "virtual": null,
      "tagIds": [
        "string"
      ]
    }
  },
  "parentId": null
}

Properties

Name	Type	Required	Description
id	string(uuid)	No	No description
timestep	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
name	string	No	The name to retrieve in export/GUI. This relation will be used to fill the name of the AlertStatus.
creationDate	string	No	the ISO8601 Date of the alertconfiguration creation
unit	string	No	The unit of the quantity
message	string	No	A text message linked to this alert (ex: An action to do when the alert is active)
formula	string	No	Formula
minOccurrences	number	No	Number of times that the alert condition must be true consecutively before an alert status to be generated
comparator	string	No	Comparator between meter and threshold (only for a simple alert)
threshold	number	No	Threshold (only for a simple alert)
timezone	string	No	Computed data will be converted to this timezone
offset	string	No	Offset duration
aggregationPolicy	string	No	Define the aggregation policy for the quantity field
description	string,null	No	No description
meters	object	No	No description
» **additionalProperties**	MeterRef	No	Schema for meter reference use in action, alert and dashboard
parentId	string,null	No	ID of the parent element (if null, the alert will be put at the root of the tree). Can only be null, or the ID of a Folder element.

Enumerated Values

Property	Value
comparator	>
comparator	<
comparator	=
comparator	<=
comparator	>=
aggregationPolicy	avg
aggregationPolicy	count
aggregationPolicy	max
aggregationPolicy	min
aggregationPolicy	sum
aggregationPolicy	stddev
aggregationPolicy	stddev_pop
aggregationPolicy	stddev_samp
aggregationPolicy	variance
aggregationPolicy	var_pop
aggregationPolicy	var_samp
aggregationPolicy	median

AlertConfigurationList

[
  {
    "id": "string",
    "timestep": "P0D",
    "name": "string",
    "creationDate": "string",
    "unit": "string",
    "message": "string",
    "formula": "string",
    "minOccurrences": 1,
    "comparator": ">",
    "threshold": 0,
    "timezone": "UTC",
    "offset": "P0D",
    "aggregationPolicy": "avg",
    "description": null,
    "meters": {
      "property1": {
        "role": null,
        "aggregationPolicy": "avg",
        "name": "string",
        "quantityType": "numeric",
        "timestep": "P0D",
        "unit": null,
        "virtual": null,
        "tagIds": [
          "string"
        ]
      },
      "property2": {
        "role": null,
        "aggregationPolicy": "avg",
        "name": "string",
        "quantityType": "numeric",
        "timestep": "P0D",
        "unit": null,
        "virtual": null,
        "tagIds": [
          "string"
        ]
      }
    },
    "parentId": null
  }
]

Properties

Name	Type	Required	Description
*anonymous*	[AlertConfiguration]	No	No description

AlertConfigurationParam

{
  "aggregationPolicy": "avg",
  "comparator": ">",
  "description": null,
  "formula": "string",
  "name": "string",
  "offset": null,
  "quantityType": "numeric",
  "recipients": [
    null
  ],
  "threshold": 0,
  "timestep": "P0D",
  "timezone": "UTC",
  "unit": "string"
}

Properties

Name	Type	Required	Description
aggregationPolicy	string	No	Define the aggregation policy for the quantity aggregation
comparator	string	No	Comparator between meter and threshold (only for a simple alert)
description	string,null	No	No description
formula	string	No	Formula to compute alert
name	string	No	The name to retrieve in export/GUI. This relation will be used to fill the name of the AlertStatus.
offset	string,null	No	Offset, should be a signed ISO8601 duration (Ex: '-P1D', 'P12D')
quantityType	string	No	Type of values in meter data
recipients	[oneOf]	No	Can be email or userId

oneOf

Name	Type	Required	Description
» *anonymous*	any	No	No description

xor

Name	Type	Required	Description
» *anonymous*	any	No	No description

continued

Name	Type	Required	Description
threshold	number	No	Threshold (only for a simple alert)
timestep	ExportTimestep	No	A duration to evaluate (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
timezone	string	No	Computed data will be converted to this timezone
unit	string	No	The unit of the quantity

Enumerated Values

Property	Value
aggregationPolicy	avg
aggregationPolicy	count
aggregationPolicy	max
aggregationPolicy	min
aggregationPolicy	sum
aggregationPolicy	stddev
aggregationPolicy	stddev_pop
aggregationPolicy	stddev_samp
aggregationPolicy	variance
aggregationPolicy	var_pop
aggregationPolicy	var_samp
aggregationPolicy	median
comparator	>
comparator	<
comparator	=
comparator	<=
comparator	>=

AlertStatus

{
  "startDate": "2024-07-08T13:12:01Z",
  "endDate": "2024-07-08T13:12:01Z",
  "isPending": true,
  "alertConfigurationId": 0,
  "isAuthor": null,
  "role": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» startDate	string(date-time)	No	The start date of the given level
» endDate	string(date-time)	No	The last date of the given level
» isPending	boolean	No	true if the status is still pending
» alertConfigurationId	number	No	ID of the related alert configuration

and

Name	Type	Required	Description
*anonymous*	AccessAttributes	No	No description

AlertStatusList

[
  {
    "startDate": "2024-07-08T13:12:01Z",
    "endDate": "2024-07-08T13:12:01Z",
    "isPending": true,
    "alertConfigurationId": 0,
    "isAuthor": null,
    "role": null
  }
]

Properties

Name	Type	Required	Description
*anonymous*	[AlertStatus]	No	No description

ApiKey

{
  "id": "string",
  "name": "string",
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "lastUseDate": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	ApiKeyParam	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» lastUseDate	Date	No	No description

ApiKeyParam

{
  "name": "string"
}

Properties

Name	Type	Required	Description
name	string	Yes	No description

Appearance

{
  "logoUrl": null,
  "mainColor": null
}

Properties

Appearance configuration fields

Name	Type	Required	Description
logoUrl	string,null	No	Url of the logo
mainColor	string,null	No	Customisable main color of the application

AuthParam

{
  "customerCode": "string",
  "password": "string",
  "username": "string"
}

Properties

AuthParam

Name	Type	Required	Description
customerCode	string	No	No description
password	string	Yes	No description
username	string	Yes	No description

AuthenticationPolicies

{
  "google": {
    "domain": "string",
    "enabled": false,
    "logoURL": "string"
  },
  "ldap": {
    "bindDN": "string",
    "emailAttribute": "string",
    "enabled": true,
    "firstNameAttribute": "string",
    "identifierAttribute": "string",
    "lastNameAttribute": "string",
    "password": "string",
    "searchBase": "string",
    "searchFilter": "string",
    "url": "string"
  },
  "saml": {
    "enabled": false
  }
}

Properties

List of ways to be authenticated

Name	Type	Required	Description
google	object	No	The Google OAuth2 configuration
» domain	string	No	The email domain to restrict
» enabled	boolean	Yes	Define if the Google OAuth2 is available
» logoURL	string	No	The logo to use in GUI
ldap	object	No	The LDAP configuration
» bindDN	string	No	Admin connection DN
» emailAttribute	string	No	the attribute to get the ldap profile email
» enabled	boolean	No	Whether the LDAP authentication is enabled
» firstNameAttribute	string	No	the attribute to get the ldap profile firstname
» identifierAttribute	string	No	the attribute to get the ldap profile login
» lastNameAttribute	string	No	the attribute to get the ldap profile lastname
» password	string	No	Password for bindDN
» searchBase	string	No	The base DN from which to search for users by username
» searchFilter	string	No	LDAP search filter with which to find a user by username
» url	string	No	URL of the LDAP server
saml	any	No	The SAML configuration

oneOf

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» enabled	boolean	Yes	No description

xor

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» enabled	boolean	Yes	No description
»» entryPoint	string	Yes	The SAML entryPoint
»» issuer	string	Yes	The SAML issuer
»» logoURL	string	Yes	The logo to use in GUI
»» cert	string	Yes	The SAML certificat
»» wantAssertionsSigned	boolean	No	specify that the IdP should always sign the assertion
»» wantAuthnResponseSigned	boolean	No	specify that the IdP should always sign the response
»» identifierAttribute	string	No	the attribute to get the SAML profile login
»» emailAttribute	string	No	the attribute to get the SAML profile email
»» firstNameAttribute	string	No	the attribute to get the SAML profile firstname
»» lastNameAttribute	string	No	the attribute to get the SAML profile lastname
»» groupsAttribute	string	No	the attribute to get the SAML profile groups
»» roleAttribute	string	No	the attribute to get the SAML profile role
»» roleMapping	object	No	the role mapping based on SAML roleAttribute
»»» reader	[string]	No	values map to role reader
»»» user	[string]	No	values map to role user
»»» admin	[string]	No	values map to role admin

Enumerated Values

Property	Value
enabled	false
enabled	true

AxisConfigurationBase

{
  "max": null,
  "min": null
}

Properties

anyOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» max	null,string	No	No description
» min	null,string	No	No description

or

Name	Type	Required	Description
*anonymous*	AxisLabel	No	No description

AxisLabel

{
  "label": null
}

Properties

Name	Type	Required	Description
label	null,string	No	Axis's label

Category

{
  "id": "string",
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "name": "string",
  "description": null,
  "color": "string",
  "icon": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» id	string(uuid)	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
*anonymous*	CategoryParam	No	No description

CategoryParam

{
  "name": "string",
  "description": null,
  "color": "string",
  "icon": null
}

Properties

Name	Type	Required	Description
name	string	Yes	No description
description	string,null	No	No description
color	string	Yes	No description
icon	null,string	No	No description

ChangePasswordParam

{
  "username": "string",
  "oldPassword": "string",
  "customerCode": "string",
  "newPassword": "string"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» username	string	Yes	Login or email
»» oldPassword	string	Yes	No description
»» customerCode	string	Yes	No description

xor

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» token	string	Yes	reset password reset token

and

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» newPassword	string	Yes	No description

ChartDatasetProperties

{
  "color": "string",
  "lineStyle": "plain",
  "lineTension": true,
  "lineWidth": 2,
  "stacked": false,
  "view": "bar"
}

Properties

Name	Type	Required	Description
color	string	Yes	No description
lineStyle	string	No	No description
lineTension	boolean	No	No description
lineWidth	number	No	No description
stacked	boolean	No	stack the axis's series
view	string,null	No	No description

Enumerated Values

Property	Value
lineStyle	plain
lineStyle	dashed
lineStyle	small-dashes
lineStyle	big-dashes
view	bar
view	area
view	line
view	scatter
view	step
view	area-step
view	null

ChartOptionsBase

{
  "showLegend": true
}

Properties

Name	Type	Required	Description
showLegend	boolean	No	Whether the legend should be displayed

Comment

{
  "id": "string",
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "content": "string",
  "details": {},
  "subjectId": "string",
  "subjectType": "Action"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» id	string(uuid)	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
*anonymous*	CommentParam	No	No description

CommentList

[
  {
    "id": "string",
    "creationDate": "2024-07-08T13:12:01Z",
    "creationUserId": "string",
    "modificationDate": null,
    "modificationUserId": null,
    "content": "string",
    "details": {},
    "subjectId": "string",
    "subjectType": "Action"
  }
]

Properties

Name	Type	Required	Description
*anonymous*	[Comment]	No	No description

CommentParam

{
  "content": "string",
  "details": {},
  "subjectId": "string",
  "subjectType": "Action"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» content	string	Yes	No description

and - discriminator: subjectType

Name	Type	Required	Description
*anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
» *anonymous*	CommentParamForActionType	No	No description

xor

Name	Type	Required	Description
» *anonymous*	CommentParamForMeterType	No	No description

CommentParamForActionType

{
  "details": {},
  "subjectId": "string",
  "subjectType": "Action"
}

Properties

Name	Type	Required	Description
details	object	No	No description
subjectId	string(uuid)	Yes	No description
subjectType	string	Yes	No description

Enumerated Values

Property	Value
subjectType	Action

CommentParamForMeterType

{
  "details": {
    "timestamp": 0
  },
  "subjectId": "string",
  "subjectType": "Meter"
}

Properties

Name	Type	Required	Description
details	object	No	No description
» timestamp	number	No	timestamp of meter
subjectId	string(uuid)	Yes	No description
subjectType	string	Yes	No description

Enumerated Values

Property	Value
subjectType	Meter

ComparisonConfiguration

{
  "offset": 0,
  "type": "relative",
  "alignDayOfWeek": false
}

Properties

Name	Type	Required	Description
offset	integer	No	Offset of the comparison range. For instance, -1 will display the previous date range.
type	string	Yes	No description
alignDayOfWeek	boolean	No	Enable or not the alignment of day of week

Enumerated Values

Property	Value
type	relative

ConditionalFormattingRule

{
  "bgColor": "string",
  "iconColor": "string",
  "iconCss": "string",
  "id": "string",
  "operator": ">",
  "textColor": "string",
  "threshold": 0
}

Properties

Name	Type	Required	Description
bgColor	string	No	No description
iconColor	string	No	No description
iconCss	string	No	No description
id	string(uuid)	Yes	ID of the rule
operator	string	Yes	No description
textColor	string	No	No description
threshold	number	Yes	No description

Enumerated Values

Property	Value
operator	>
operator	>=
operator	<
operator	<=
operator	=

CorrelationExport

[
  [
    0
  ]
]

Properties

None

CorrelationExportParam

{
  "endDate": "2024-07-08T13:12:01Z",
  "meters": [
    {
      "aggregationPolicy": "avg",
      "formula": "string",
      "id": "string",
      "name": null,
      "quantityType": "string",
      "timestep": "P0D"
    }
  ],
  "offset": "string",
  "startDate": "2024-07-08T13:12:01Z",
  "timestep": "P0D",
  "timezone": "UTC"
}

Properties

Name	Type	Required	Description
endDate	string(date-time)	Yes	date time as ISO8601
meters	[oneOf]	Yes	Meter ids to get

oneOf

Name	Type	Required	Description
» *anonymous*	FormulaExportParam	No	No description

xor

Name	Type	Required	Description
» *anonymous*	MeterExportParam	No	No description

continued

Name	Type	Required	Description
offset	string	No	By default the first meter offset is used. This parameter overrides the first meter offset. Should be a signed ISO8601 duration (Ex: '-P1D', 'P12D')
startDate	string(date-time)	Yes	date time as ISO8601
timestep	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
timezone	string	No	timezone

CorrelationMatrixConfiguration

{
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "series": [
      {
        "type": "formula",
        "id": "string",
        "title": "string",
        "aggregationPolicy": "avg",
        "formula": "string",
        "quantityType": "string",
        "timestep": "P0D",
        "shift": null,
        "color": null,
        "decimals": null
      }
    ],
    "timestep": "P0D"
  },
  "title": "string",
  "type": "correlation-matrix"
}

Properties

Name	Type	Required	Description
data	object	Yes	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» series	[allOf]	Yes	List of meters

allOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
» timestep	ExportTimestepNullable	No	No description
title	string	No	No description
type	string	Yes	No description

Enumerated Values

Property	Value
type	correlation-matrix

CumulativeConfiguration

null

Properties

Options of the cumulative option

Name	Type	Required	Description
*anonymous*	object,null	No	Options of the cumulative option
enabled	boolean	No	Whether data is shown as cumulated

Customer

{
  "customerCode": "string",
  "name": "string",
  "url": null,
  "authenticationPolicies": {
    "google": {
      "domain": "string",
      "enabled": false,
      "logoURL": "string"
    },
    "ldap": {
      "bindDN": "string",
      "emailAttribute": "string",
      "enabled": true,
      "firstNameAttribute": "string",
      "identifierAttribute": "string",
      "lastNameAttribute": "string",
      "password": "string",
      "searchBase": "string",
      "searchFilter": "string",
      "url": "string"
    },
    "saml": {
      "enabled": false
    }
  },
  "settings": {
    "appearance": {
      "logoUrl": null,
      "mainColor": null
    },
    "features": {},
    "passwordConfiguration": {
      "minimumSize": 6,
      "numericCharacter": false,
      "specialCharacter": false,
      "uppercaseCharacter": false
    },
    "timesteps": [
      "string"
    ],
    "timezone": "string"
  },
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» customerCode	string	Yes	Unique code of the customer
» name	string	Yes	Displayable name of the customer
» url	string,null	No	URL of the customer application
» authenticationPolicies	AuthenticationPolicies	No	List of ways to be authenticated
» settings	CustomerSettings	No	Settings of the customer

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

CustomerSettings

{
  "appearance": {
    "logoUrl": null,
    "mainColor": null
  },
  "features": {},
  "passwordConfiguration": {
    "minimumSize": 6,
    "numericCharacter": false,
    "specialCharacter": false,
    "uppercaseCharacter": false
  },
  "timesteps": [
    "string"
  ],
  "timezone": "string"
}

Properties

Settings of the customer

Name	Type	Required	Description
appearance	Appearance	No	Appearance configuration fields
features	object	No	Feature flags enabled on the customer environment
passwordConfiguration	PasswordConfiguration	No	Password configuration details
timesteps	[string]	No	Timesteps of the customer
timezone	string	No	Timezone of the customer

Dashboard

{
  "id": "string",
  "isAuthor": null,
  "role": null,
  "name": "string",
  "parentId": null,
  "description": null,
  "isDraft": false,
  "timezone": "UTC",
  "styles": {
    "font": "string"
  },
  "layout": {
    "options": {
      "footer": null,
      "locale": "en-us",
      "margins": [
        0,
        0,
        0,
        0
      ],
      "noEnergiencyFooter": true,
      "format": "screen"
    }
  },
  "dateRange": null,
  "timestep": "P0D",
  "variables": [
    {
      "id": "string",
      "name": "string",
      "type": "meter",
      "value": "string"
    }
  ],
  "widgets": [
    {
      "options": {
        "decimals": null,
        "backgroundImageUrl": "string"
      },
      "id": "string",
      "layout": {
        "col": 0,
        "row": 0,
        "width": 1,
        "height": 1
      },
      "data": {
        "dateRange": {
          "offset": -1,
          "type": "relative",
          "unit": "day"
        },
        "series": [
          {
            "type": "formula",
            "id": "string",
            "title": "string",
            "aggregationPolicy": "avg",
            "formula": "string",
            "quantityType": "string",
            "timestep": "P0D",
            "shift": null,
            "color": "#ff5263",
            "decimals": null,
            "statistic": "sum",
            "width": 0,
            "height": 0,
            "x": 0,
            "y": 0,
            "bgColor": "#c5f6fa",
            "fontSize": "normal",
            "fontWeight": "normal",
            "italic": false,
            "underline": false
          }
        ]
      },
      "type": "synoptic"
    }
  ],
  "template": null,
  "scheduling": {
    "enabled": false,
    "dateRange": "string",
    "delay": "P0D",
    "recipients": [
      null
    ],
    "copyWidgetText": false,
    "dateTime": {
      "hour": "string"
    },
    "frequency": "daily"
  },
  "enableShareLink": false,
  "meterIds": [
    "string"
  ],
  "meters": {
    "property1": {
      "role": null,
      "aggregationPolicy": "avg",
      "name": "string",
      "quantityType": "numeric",
      "timestep": "P0D",
      "unit": null,
      "virtual": null,
      "tagIds": [
        "string"
      ]
    },
    "property2": {
      "role": null,
      "aggregationPolicy": "avg",
      "name": "string",
      "quantityType": "numeric",
      "timestep": "P0D",
      "unit": null,
      "virtual": null,
      "tagIds": [
        "string"
      ]
    }
  },
  "shareLinkId": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	AccessAttributes	No	No description

and

Name	Type	Required	Description
*anonymous*	DashboardParam	No	No description

and

Name	Type	Required	Description
*anonymous*	DashboardParamRequired	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» meterIds	[string]	No	Meters' id used in the dashboards
» meters	object	No	No description
»» **additionalProperties**	MeterRef	No	Schema for meter reference use in action, alert and dashboard
» shareLinkId	string,null(uuid)	No	ID allowing to access to the dashboard by share link

DashboardBase

{
  "name": "string",
  "parentId": null,
  "description": null,
  "isDraft": false,
  "timezone": "UTC",
  "styles": {
    "font": "string"
  },
  "layout": {
    "options": {
      "footer": null,
      "locale": "en-us",
      "margins": [
        0,
        0,
        0,
        0
      ],
      "noEnergiencyFooter": true,
      "format": "screen"
    }
  },
  "dateRange": null,
  "timestep": "P0D",
  "variables": [
    {
      "id": "string",
      "name": "string",
      "type": "meter",
      "value": "string"
    }
  ],
  "widgets": [
    {
      "options": {
        "decimals": null,
        "backgroundImageUrl": "string"
      },
      "id": "string",
      "layout": {
        "col": 0,
        "row": 0,
        "width": 1,
        "height": 1
      },
      "data": {
        "dateRange": {
          "offset": -1,
          "type": "relative",
          "unit": "day"
        },
        "series": [
          {
            "type": "formula",
            "id": "string",
            "title": "string",
            "aggregationPolicy": "avg",
            "formula": "string",
            "quantityType": "string",
            "timestep": "P0D",
            "shift": null,
            "color": "#ff5263",
            "decimals": null,
            "statistic": "sum",
            "width": 0,
            "height": 0,
            "x": 0,
            "y": 0,
            "bgColor": "#c5f6fa",
            "fontSize": "normal",
            "fontWeight": "normal",
            "italic": false,
            "underline": false
          }
        ]
      },
      "type": "synoptic"
    }
  ]
}

Properties

Schema for commun editable properties of dashboard and report

Name	Type	Required	Description
name	string	No	No description
parentId	string,null(uuid)	No	ID of the parent element (if null, the folder will be put at the root of the tree). Can only be null, or the ID of a Folder element.
description	string,null	No	No description
isDraft	boolean	No	Whether the dashboard has been published or not. If it's still a draft, it's only visible by the author.
timezone	string	No	Timezone used to display dashboard's data
styles	object	No	No description
» font	string	No	Font for a dashboard
layout	object	No	No description
» options	any	No	No description

oneOf

Name	Type	Required	Description
»» *anonymous*	LayoutOptionsScreen	No	No description

xor

Name	Type	Required	Description
»» *anonymous*	LayoutOptionsA4	No	No description

continued

Name	Type	Required	Description
» dateRange	any	No	No description

anyOf

Name	Type	Required	Description
»» *anonymous*	DateRangeAbsolute	No	No description

or

Name	Type	Required	Description
»» *anonymous*	DateRangeRelative	No	No description

or

Name	Type	Required	Description
»» *anonymous*	null,string	No	No description

continued

Name	Type	Required	Description
» timestep	ExportTimestepNullable	No	No description
» variables	[DashboardVariableConfiguration]	No	No description
» widgets	[Widget]	No	[Widget]

DashboardFormulaDataset

{
  "type": "formula",
  "id": "string",
  "title": "string",
  "aggregationPolicy": "avg",
  "formula": "string",
  "quantityType": "string",
  "timestep": "P0D",
  "shift": null,
  "color": null
}

Properties

Serie of values defined by a formula

Name	Type	Required	Description
type	string	Yes	No description

allOf

Name	Type	Required	Description
*anonymous*	DatasetProperties	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» aggregationPolicy	string	No	Override the aggregation policy of the meter
» formula	string	No	Formula (Required if using formula)
» quantityType	string	No	Type of values in meter data
» timestep	ExportTimestepNullable	No	No description
» shift	string,null	No	Shift of the formula
» color	string,null	No	Formula's color
» type	string	Yes	No description

Enumerated Values

Property	Value
type	formula
aggregationPolicy	avg
aggregationPolicy	count
aggregationPolicy	max
aggregationPolicy	min
aggregationPolicy	sum
aggregationPolicy	stddev
aggregationPolicy	stddev_pop
aggregationPolicy	stddev_samp
aggregationPolicy	variance
aggregationPolicy	var_pop
aggregationPolicy	var_samp
aggregationPolicy	median
type	formula

DashboardMeterDataset

{
  "type": "meter",
  "id": "string",
  "title": "string",
  "meterId": "string",
  "unit": null
}

Properties

Name	Type	Required	Description
type	string	Yes	No description

allOf

Name	Type	Required	Description
*anonymous*	DatasetProperties	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» meterId	string(uuid)	Yes	ID of the meter
» unit	string,null	No	Unit used to display meter values

Enumerated Values

Property	Value
type	meter

DashboardParam

{
  "name": "string",
  "parentId": null,
  "description": null,
  "isDraft": false,
  "timezone": "UTC",
  "styles": {
    "font": "string"
  },
  "layout": {
    "options": {
      "footer": null,
      "locale": "en-us",
      "margins": [
        0,
        0,
        0,
        0
      ],
      "noEnergiencyFooter": true,
      "format": "screen"
    }
  },
  "dateRange": null,
  "timestep": "P0D",
  "variables": [
    {
      "id": "string",
      "name": "string",
      "type": "meter",
      "value": "string"
    }
  ],
  "widgets": [
    {
      "options": {
        "decimals": null,
        "backgroundImageUrl": "string"
      },
      "id": "string",
      "layout": {
        "col": 0,
        "row": 0,
        "width": 1,
        "height": 1
      },
      "data": {
        "dateRange": {
          "offset": -1,
          "type": "relative",
          "unit": "day"
        },
        "series": [
          {
            "type": "formula",
            "id": "string",
            "title": "string",
            "aggregationPolicy": "avg",
            "formula": "string",
            "quantityType": "string",
            "timestep": "P0D",
            "shift": null,
            "color": "#ff5263",
            "decimals": null,
            "statistic": "sum",
            "width": 0,
            "height": 0,
            "x": 0,
            "y": 0,
            "bgColor": "#c5f6fa",
            "fontSize": "normal",
            "fontWeight": "normal",
            "italic": false,
            "underline": false
          }
        ]
      },
      "type": "synoptic"
    }
  ],
  "template": null,
  "scheduling": {
    "enabled": false,
    "dateRange": "string",
    "delay": "P0D",
    "recipients": [
      null
    ],
    "copyWidgetText": false,
    "dateTime": {
      "hour": "string"
    },
    "frequency": "daily"
  },
  "enableShareLink": false
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	DashboardBase	No	Schema for commun editable properties of dashboard and report

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» template	string,null	No	No description
» scheduling	any	No	No description

oneOf

Name	Type	Required	Description
»» *anonymous*	any	No	No description

allOf

Name	Type	Required	Description
»»» *anonymous*	object	No	No description
»»»» enabled	boolean	No	No description
»»»» dateRange	string	No	No description
»»»» delay	string	No	No description
»»»» recipients	[oneOf]	No	Can be email or userId

oneOf

Name	Type	Required	Description
»»»»» *anonymous*	any	No	No description

xor

Name	Type	Required	Description
»»»»» *anonymous*	any	No	No description

continued

Name	Type	Required	Description
»»»» copyWidgetText	boolean	No	copy the widgets Text from the previous report

and

Name	Type	Required	Description
»»» *anonymous*	any	No	No description

anyOf

Name	Type	Required	Description
»»»» *anonymous*	SchedulingDaily	No	No description

or

Name	Type	Required	Description
»»»» *anonymous*	SchedulingWeekly	No	No description

or

Name	Type	Required	Description
»»»» *anonymous*	SchedulingMonthly	No	No description

or

Name	Type	Required	Description
»»»» *anonymous*	SchedulingYearly	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	any	No	No description

allOf

Name	Type	Required	Description
»»»» *anonymous*	object	No	No description
»»»»» enabled	boolean	Yes	No description
»»»»» dateRange	string	Yes	Only duration with one unit are allowed
»»»»» delay	string	No	Only duration with one unit are allowed
»»»»» recipients	[oneOf]	No	Can be email or userId

oneOf

Name	Type	Required	Description
»»»»»» *anonymous*	any	No	No description

xor

Name	Type	Required	Description
»»»»»» *anonymous*	any	No	No description

continued

Name	Type	Required	Description
»»»»» frequency	string	Yes	Required when scheduling enabled
»»»»» dateTime	object	Yes	Required when scheduling

and

Name	Type	Required	Description
»»»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»»»» *anonymous*	SchedulingDaily	No	No description

xor

Name	Type	Required	Description
»»»»» *anonymous*	SchedulingWeekly	No	No description

xor

Name	Type	Required	Description
»»»»» *anonymous*	SchedulingMonthly	No	No description

xor

Name	Type	Required	Description
»»»»» *anonymous*	SchedulingYearly	No	No description

continued

Name	Type	Required	Description
»»»» enableShareLink	boolean	No	Whether a share link to this dashboard is enabled

Enumerated Values

Property	Value
template	null
template	customer
template	library
enabled	false
enabled	true

DashboardParamRequired

{}

Properties

None

DashboardStatisticDataset

{
  "type": "statistic",
  "id": "string",
  "title": "string",
  "statistic": "sum"
}

Properties

Serie of values defined by a statistic

Name	Type	Required	Description
type	string	Yes	No description

allOf

Name	Type	Required	Description
*anonymous*	DatasetProperties	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» type	string	Yes	type of the dataset
» statistic	StatisticEnum	Yes	No description

Enumerated Values

Property	Value
type	statistic
type	statistic

DashboardVariableConfiguration

{
  "id": "string",
  "name": "string",
  "type": "meter",
  "value": "string"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» id	string(uuid)	Yes	The id of the dataset
» name	string	Yes	Name of the variable

and - discriminator: type

Name	Type	Required	Description
*anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
» *anonymous*	DashboardVariableMeterConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	DashboardVariableNumberConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	DashboardVariableStringConfiguration	No	No description

DashboardVariableDataset

{
  "type": "variable",
  "id": "string",
  "title": "string",
  "variableId": "string",
  "unit": null
}

Properties

Name	Type	Required	Description
type	string	Yes	No description

allOf

Name	Type	Required	Description
*anonymous*	DatasetProperties	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» variableId	string(uuid)	Yes	ID of the variable
» type	string	Yes	type of the data
» unit	string,null	No	Unit used to display variable values

Enumerated Values

Property	Value
type	variable
type	variable

DashboardVariableMeterConfiguration

{
  "type": "meter",
  "value": "string"
}

Properties

Name	Type	Required	Description
type	string	Yes	No description
value	string(uuid)	Yes	ID of the meter

Enumerated Values

Property	Value
type	meter

DashboardVariableNumberConfiguration

{
  "type": "number",
  "value": 0
}

Properties

Name	Type	Required	Description
type	string	Yes	No description
value	number	Yes	Number value

Enumerated Values

Property	Value
type	number

DashboardVariableStringConfiguration

{
  "type": "string",
  "value": "string"
}

Properties

Name	Type	Required	Description
type	string	Yes	No description
value	string	Yes	string value

Enumerated Values

Property	Value
type	string

DataType

{
  "id": "string",
  "defaultUnit": null,
  "name": "string",
  "units": [
    {
      "coef": 0,
      "symbol": "string"
    }
  ],
  "locales": {
    "property1": {
      "name": "string"
    },
    "property2": {
      "name": "string"
    }
  },
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	DataTypeParam	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

DataTypeList

[
  {
    "id": "string",
    "defaultUnit": null,
    "name": "string",
    "units": [
      {
        "coef": 0,
        "symbol": "string"
      }
    ],
    "locales": {
      "property1": {
        "name": "string"
      },
      "property2": {
        "name": "string"
      }
    },
    "creationDate": "2024-07-08T13:12:01Z",
    "creationUserId": "string",
    "modificationDate": null,
    "modificationUserId": null
  }
]

Properties

Name	Type	Required	Description
*anonymous*	[DataType]	No	No description

DataTypeParam

{
  "defaultUnit": null,
  "name": "string",
  "units": [
    {
      "coef": 0,
      "symbol": "string"
    }
  ],
  "locales": {
    "property1": {
      "name": "string"
    },
    "property2": {
      "name": "string"
    }
  }
}

Properties

Name	Type	Required	Description
defaultUnit	string,null	No	No description
name	string	No	No description
units	[object]	No	No description
» coef	number	No	No description
» symbol	string	No	No description
locales	object	Yes	Contains all label translation by locale
» **additionalProperties**	object	No	Labels translation of a locale
»» name	string	Yes	label of the locale

DatasetDecimals

{
  "decimals": null
}

Properties

Name	Type	Required	Description
decimals	number,null	No	Number of decimals used to display dataset values

DatasetProperties

{
  "id": "string",
  "title": "string"
}

Properties

Name	Type	Required	Description
id	string(uuid)	Yes	The id of the dataset
title	string	No	Title used to name the dataset in the widget. If not defined, the native name of the dataset will be used.

DateRangeAbsolute

null

Properties

Name	Type	Required	Description
*anonymous*	object,null	No	No description
endDate	string(date-time)	Yes	No description
startDate	string(date-time)	Yes	No description
type	string	Yes	No description

Enumerated Values

Property	Value
type	absolute

DateRangeRelative

{
  "offset": -1,
  "type": "relative",
  "unit": "day"
}

Properties

Name	Type	Required	Description
offset	any	Yes	No description

anyOf

Name	Type	Required	Description
» *anonymous*	integer	No	No description

or

Name	Type	Required	Description
» *anonymous*	[number]	No	No description

continued

Name	Type	Required	Description
type	string	Yes	No description
unit	string,null	Yes	No description

Enumerated Values

Property	Value
type	relative
unit	day
unit	week
unit	month
unit	year

Document

{
  "id": "string",
  "parentId": null,
  "name": "string",
  "documentUrl": "string",
  "thumbnailUrl": "string",
  "subjectType": "Meter",
  "subjectId": "string",
  "subjectName": "string",
  "isAuthor": null,
  "role": null,
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null
}

Properties

Document

Name	Type	Required	Description
Document	any	No	No description

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» id	string(uuid)	No	No description
» parentId	string,null(uuid)	No	ID of the parent element (if null, the document will be put at the root of the tree). Can only be null, or the ID of a Folder element.
» name	string	No	No description
» documentUrl	string	No	No description
» thumbnailUrl	string	No	No description
» subjectType	string	No	No description
» subjectId	string	No	No description
» subjectName	string	No	No description

and

Name	Type	Required	Description
*anonymous*	AccessAttributes	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

Enumerated Values

Property	Value
subjectType	Meter
subjectType	Action
subjectType	Dashboard
subjectType	Report

DocumentList

[
  {
    "id": "string",
    "parentId": null,
    "name": "string",
    "documentUrl": "string",
    "thumbnailUrl": "string",
    "subjectType": "Meter",
    "subjectId": "string",
    "subjectName": "string",
    "isAuthor": null,
    "role": null,
    "creationDate": "2024-07-08T13:12:01Z",
    "creationUserId": "string",
    "modificationDate": null,
    "modificationUserId": null
  }
]

Properties

DocumentList

Name	Type	Required	Description
DocumentList	[Document]	No	No description

DocumentParam

{
  "document": "string",
  "name": "string"
}

Properties

DocumentParam

Name	Type	Required	Description
document	string	Yes	No description
name	string	Yes	No description

DocumentParamForActionType

{
  "document": "string",
  "name": "string",
  "subjectId": "string",
  "subjectType": "Action"
}

Properties

DocumentParamForActionType

Name	Type	Required	Description
document	string(binary)	Yes	No description
name	string	Yes	No description
subjectId	string(uuid)	Yes	No description
subjectType	string	Yes	No description

Enumerated Values

Property	Value
subjectType	Action

DocumentParamForMeterType

{
  "document": "string",
  "name": "string",
  "subjectId": "string",
  "subjectType": "Meter"
}

Properties

DocumentParamForMeterType

Name	Type	Required	Description
document	string(binary)	Yes	No description
name	string	Yes	No description
subjectId	string(uuid)	Yes	No description
subjectType	string	Yes	No description

Enumerated Values

Property	Value
subjectType	Meter

Event

{
  "action": "create",
  "details": {},
  "id": "string",
  "ipAddress": "192.168.0.1",
  "subjectId": "string",
  "subjectType": "string"
}

Properties

Event

Name	Type	Required	Description
action	string	No	No description
details	object	No	No description
id	string(uuid)	No	No description
ipAddress	string(ipv4)	No	No description
subjectId	string	No	No description
subjectType	string	No	No description

Enumerated Values

Property	Value
action	create
action	update
action	delete

ExportRange

{
  "endDate": "2024-07-08T13:12:01Z",
  "startDate": "2024-07-08T13:12:01Z"
}

Properties

Name	Type	Required	Description
endDate	string(date-time)	No	UTC date as ISO8601
startDate	string(date-time)	No	UTC date as ISO8601

ExportTimestep

"P0D"

Properties

Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y

Name	Type	Required	Description
*anonymous*	string	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y

ExportTimestepNullable

"P0D"

Properties

oneOf

Name	Type	Required	Description
*anonymous*	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y

xor

Name	Type	Required	Description
*anonymous*	null	No	No description

Favorite

{
  "id": "string",
  "subjectId": "string",
  "subjectType": "Dashboard",
  "creationDate": "2024-07-08T13:12:01Z",
  "userId": "string"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	FavoriteParam	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» creationDate	string(date-time)	No	Date and time (ISO 8601 format) when it was created
» userId	string(uuid)	No	No description

FavoriteParam

{
  "subjectId": "string",
  "subjectType": "Dashboard"
}

Properties

Name	Type	Required	Description
subjectId	string(uuid)	Yes	No description
subjectType	string	Yes	No description

Enumerated Values

Property	Value
subjectType	Dashboard

Folder

{
  "id": "string",
  "description": null,
  "name": "string",
  "parentId": null,
  "context": "actions",
  "access": null,
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "isAuthor": null,
  "role": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» id	string(uuid)	No	ID of the folder, defined by Energiency

and

Name	Type	Required	Description
*anonymous*	FolderParam	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
*anonymous*	AccessAttributes	No	No description

FolderBaseParam

{
  "description": null,
  "name": "string",
  "parentId": null
}

Properties

Name	Type	Required	Description
description	string,null	No	Description of the folder
name	string	Yes	Name of the folder
parentId	string,null(uuid)	No	ID of the parent element (if null, the folder will be put at the root of the tree). Can only be null, or the ID of a Folder element.

FolderParam

{
  "description": null,
  "name": "string",
  "parentId": null,
  "context": "actions",
  "access": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	FolderBaseParam	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» context	string	Yes	Context where the folder is

and

Name	Type	Required	Description
*anonymous*	AccessParam	No	Defined the access to a ressource and these sub ressources. Access keys are user's id or group's id. Access values are read to give read-only access, or write to give edit access.

Enumerated Values

Property	Value
context	actions
context	dashboards
context	meters
context	documents
context	alertConfigurations

FormulaExportParam

{
  "aggregationPolicy": "avg",
  "formula": "string",
  "id": "string",
  "name": null,
  "quantityType": "string",
  "timestep": "P0D"
}

Properties

Name	Type	Required	Description
aggregationPolicy	string	No	Override the aggregation policy of the meter
formula	string	Yes	Formula (Required if using formula)
id	string(uuid)	Yes	The id of the required meter
name	null,string	No	The name of the meter
quantityType	string	No	Type of values in meter data
timestep	ExportTimestep	Yes	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y

Enumerated Values

Property	Value
aggregationPolicy	avg
aggregationPolicy	count
aggregationPolicy	max
aggregationPolicy	min
aggregationPolicy	sum
aggregationPolicy	stddev
aggregationPolicy	stddev_pop
aggregationPolicy	stddev_samp
aggregationPolicy	variance
aggregationPolicy	var_pop
aggregationPolicy	var_samp
aggregationPolicy	median

GradientBase

{
  "type": "value",
  "smooth": true,
  "stops": [
    {
      "color": "string",
      "offset": 0
    }
  ]
}

Properties

Name	Type	Required	Description
type	string	Yes	No description
smooth	boolean	No	If true, the color of a point is the interpolated color between two stops
stops	[object]	Yes	Color stops that compose the gradient
» color	string	No	Color of the gradient
» offset	number	No	Offset of the gradient stop

Enumerated Values

Property	Value
type	value
type	percentile

GradientLock

{
  "locked": true,
  "lockedParams": {
    "endDate": "2024-07-08T13:12:01Z",
    "startDate": "2024-07-08T13:12:01Z",
    "timestep": "P0D",
    "timezone": "UTC",
    "offsets": [
      0
    ]
  }
}

Properties

oneOf

Name	Type	Required	Description
*anonymous*	object	No	Whether locked is enabled
» locked	boolean	No	No description
» lockedParams	object	Yes	No description

allOf

Name	Type	Required	Description
»» *anonymous*	ExportRange	No	No description

and

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» timestep	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
»»» timezone	string	No	timezone
»»» offsets	[number]	No	percentil's result

xor

Name	Type	Required	Description
»» *anonymous*	object	No	Whether locked is disabled
»»» locked	boolean	No	No description
»»» lockedParams	object	No	No description

Enumerated Values

Property	Value
locked	true
locked	false

GradientPercent

{
  "type": "value",
  "smooth": true,
  "stops": [
    {
      "color": "string",
      "offset": 0
    }
  ]
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	GradientBase	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	Override properties to handle percent
» stops	[object]	No	No description
»» offset	number	No	Offset of the gradient stop, where 0 is the offset of the color corresponding to the minimal value, 1 is the offset of the color corresponding to the maximal value

Group

{
  "id": "string",
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "description": null,
  "members": {
    "property1": {
      "role": "read"
    },
    "property2": {
      "role": "read"
    }
  },
  "name": "string",
  "role": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
*anonymous*	GroupParam	No	No description

and

Name	Type	Required	Description
*anonymous*	AccessRole	No	No description

GroupBy

[
  "hour",
  "hour"
]

Properties

oneOf

Name	Type	Required	Description
*anonymous*	GroupByHourDayOfWeek	No	No description

xor

Name	Type	Required	Description
*anonymous*	GroupByHourMonth	No	No description

xor

Name	Type	Required	Description
*anonymous*	GroupByHourDayOfYear	No	No description

xor

Name	Type	Required	Description
*anonymous*	GroupByHourWeek	No	No description

xor

Name	Type	Required	Description
*anonymous*	GroupByDayOfWeekWeek	No	No description

xor

Name	Type	Required	Description
*anonymous*	GroupByDayOfWeekMonth	No	No description

xor

Name	Type	Required	Description
*anonymous*	SimpleGroupBy	No	Groups the series by month, week, hour, day of week or or day of the year

GroupByDayOfWeekMonth

[
  "dayOfWeek",
  "dayOfWeek"
]

Properties

None

GroupByDayOfWeekWeek

[
  "dayOfWeek",
  "dayOfWeek"
]

Properties

None

GroupByHourDayOfWeek

[
  "hour",
  "hour"
]

Properties

None

GroupByHourDayOfYear

[
  "hour",
  "hour"
]

Properties

None

GroupByHourMonth

[
  "hour",
  "hour"
]

Properties

None

GroupByHourWeek

[
  "hour",
  "hour"
]

Properties

None

GroupParam

{
  "description": null,
  "members": {
    "property1": {
      "role": "read"
    },
    "property2": {
      "role": "read"
    }
  },
  "name": "string"
}

Properties

Name	Type	Required	Description
description	null,string	No	No description
members	object	No	No description
» **additionalProperties**	object	No	Map of members by user's id
»» role	string	No	role write can edit group
» name	string	Yes	No description

Enumerated Values

Property	Value
role	read
role	write

HeatMapConfiguration

{
  "data": {
    "xAxis": {
      "groubBy": "hour"
    },
    "yAxis": {
      "groubBy": "hour"
    },
    "timestep": "P0D",
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    }
  },
  "options": {
    "gradient": {
      "type": "value",
      "smooth": true,
      "stops": [
        {
          "color": "string",
          "offset": 0
        }
      ],
      "locked": true,
      "lockedParams": {
        "endDate": "2024-07-08T13:12:01Z",
        "startDate": "2024-07-08T13:12:01Z",
        "timestep": "P0D",
        "timezone": "UTC",
        "offsets": [
          0
        ]
      }
    },
    "showGradient": true
  },
  "title": "string",
  "type": "heatmap"
}

Properties

HeatMapConfiguration

Name	Type	Required	Description
data	any	Yes	No description

anyOf

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» xAxis	object	Yes	No description
»»» groubBy	SimpleGroupBy	No	Groups the series by month, week, hour, day of week or or day of the year
»» yAxis	object	Yes	No description
»»» groubBy	SimpleGroupBy	No	Groups the series by month, week, hour, day of week or or day of the year
»» timestep	ExportTimestepNullable	No	No description
»» dateRange	WidgetDateRangeConfiguration	No	No description

or - discriminator: type

Name	Type	Required	Description
» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»» *anonymous*	DashboardVariableDataset	No	No description

or

Name	Type	Required	Description
» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
options	object	No	No description
» gradient	any	No	Gradient colors applied on HeatMap's cases

allOf

Name	Type	Required	Description
»» *anonymous*	GradientBase	No	No description

and

Name	Type	Required	Description
»» *anonymous*	GradientLock	No	No description

continued

Name	Type	Required	Description
» showGradient	boolean	No	No description
title	string	No	No description
type	string	Yes	No description

Enumerated Values

Property	Value
type	heatmap

HistogramConfiguration

{
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "timestep": null,
    "xAxis": {
      "nbBuckets": "string",
      "series": [
        {
          "type": "meter",
          "id": "string",
          "title": "string",
          "meterId": "string",
          "unit": null
        }
      ],
      "max": null,
      "min": null
    },
    "yAxis": {
      "showZero": true,
      "label": null
    }
  },
  "options": {
    "showLegend": true
  },
  "title": "string",
  "type": "histogram"
}

Properties

Name	Type	Required	Description
data	object	Yes	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» timestep	string,null	No	No description
» xAxis	any	No	No description

allOf

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» nbBuckets	string	No	No description
»»» series	[allOf]	No	No description

oneOf

Name	Type	Required	Description
»»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»»» *anonymous*	AxisConfigurationBase	No	No description

continued

Name	Type	Required	Description
»» yAxis	any	No	No description

allOf

Name	Type	Required	Description
»»» *anonymous*	object	No	No description
»»»» showZero	boolean	No	display zero on axis

and

Name	Type	Required	Description
»»» *anonymous*	AxisLabel	No	No description

continued

Name	Type	Required	Description
»» options	ChartOptionsBase	No	No description
»» title	string	No	No description
»» type	string	Yes	No description

Enumerated Values

Property	Value
type	histogram

HistogramExport

{
  "max": 0,
  "min": 0,
  "property1": [
    0
  ],
  "property2": [
    0
  ]
}

Properties

Name	Type	Required	Description
**additionalProperties**	[number]	No	Map of values by series id
max	number	No	maximum range's value
min	number	No	minimum range's value

HistogramExportParam

{
  "endDate": "2024-07-08T13:12:01Z",
  "max": null,
  "meters": [
    {
      "aggregationPolicy": "avg",
      "formula": "string",
      "id": "string",
      "name": null,
      "quantityType": "string",
      "timestep": "P0D"
    }
  ],
  "min": null,
  "nbBuckets": 1,
  "startDate": "2024-07-08T13:12:01Z",
  "timestep": "P0D",
  "timezone": "UTC"
}

Properties

Name	Type	Required	Description
endDate	string(date-time)	Yes	date time as ISO8601
max	number,null	No	The histogram's upper bound used in bucketing (exclusive), by default largest value of the meters
meters	[oneOf]	Yes	Meter ids to get

oneOf

Name	Type	Required	Description
» *anonymous*	FormulaExportParam	No	No description

xor

Name	Type	Required	Description
» *anonymous*	MeterExportParam	No	No description

continued

Name	Type	Required	Description
min	number,null	No	The histogram's lower bound used in bucketing (inclusive), by default smallest value of the meters
nbBuckets	integer	Yes	The integer value for the number of interval buckets (partitions)
startDate	string(date-time)	Yes	date time as ISO8601
timestep	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
timezone	string	No	timezone

HistoricalObject

{
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null
}

Properties

Name	Type	Required	Description
creationDate	string(date-time)	No	Date and time (ISO 8601 format) when it was created
creationUserId	string	No	ID of the user who created
modificationDate	string,null(date-time)	No	Date and time (ISO 8601 format) of the last change
modificationUserId	string,null	No	ID of the user who did the last change

Id

{
  "id": "string"
}

Properties

Id

Name	Type	Required	Description
id	string(uuid)	No	ID defined by Energiency

Import

{
  "id": "string",
  "count": 0,
  "endDate": "2024-07-08T13:12:01Z",
  "firstDate": "2024-07-08T13:12:01Z",
  "lastDate": "2024-07-08T13:12:01Z",
  "name": "string",
  "startDate": "2024-07-08T13:12:01Z",
  "meters": {
    "property1": null,
    "property2": null
  }
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» count	number	No	The number of imported points
» endDate	string(date-time)	No	The endDate of the import
» firstDate	string(date-time)	No	The date of the first imported point
» lastDate	string(date-time)	No	The date of the last imported point
» name	string	No	The name of the import group
» startDate	string(date-time)	No	The startDate of the import
» meters	object	No	The number of imported points by meter's id
»» **additionalProperties**	any	No	No description

ImportAlert

{
  "id": "string",
  "delay": "string",
  "description": null,
  "name": "string",
  "pattern": "string",
  "recipients": [
    null
  ],
  "timezone": "UTC"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» id	string	No	No description

and

Name	Type	Required	Description
*anonymous*	ImportAlertParams	No	No description

ImportAlertList

[
  {
    "id": "string",
    "delay": "string",
    "description": null,
    "name": "string",
    "pattern": "string",
    "recipients": [
      null
    ],
    "timezone": "UTC"
  }
]

Properties

Name	Type	Required	Description
*anonymous*	[ImportAlert]	No	No description

ImportAlertParams

{
  "delay": "string",
  "description": null,
  "name": "string",
  "pattern": "string",
  "recipients": [
    null
  ],
  "timezone": "UTC"
}

Properties

Name	Type	Required	Description
delay	string	Yes	A duration to evaluate (as ISO8601/Durations). Limitation : Over a period of a month to 10 minutes, allowed timestep are P1M, P3M and P1Y
description	string,null	No	No description
name	string	No	No description
pattern	string	Yes	No description
recipients	[oneOf]	No	No description

oneOf

Name	Type	Required	Description
» *anonymous*	any	No	No description

xor

Name	Type	Required	Description
» *anonymous*	any	No	No description

continued

Name	Type	Required	Description
timezone	string	No	Timezone used to send email

ImportParams

[
  {}
]

Properties

Name	Type	Required	Description
clientID	string	No	No description
date	string(date-time)	No	No description
meterId	string(uuid)	No	No description
quantity	any	No	No description

anyOf

Name	Type	Required	Description
» *anonymous*	string	No	No description

or

Name	Type	Required	Description
» *anonymous*	number	No	No description

continued

Name	Type	Required	Description
sourceId	string	No	No description

oneOf

Name	Type	Required	Description
*anonymous*	object	No	No description

xor

Name	Type	Required	Description
*anonymous*	object	No	No description

xor

Name	Type	Required	Description
*anonymous*	object	No	No description

ImportStatusMessages

[
  {
    "level": "info",
    "message": "string"
  }
]

Properties

Name	Type	Required	Description
level	string	No	Message level
message	string	No	Description of the message

Enumerated Values

Property	Value
level	info
level	warning
level	error

Job

{
  "data": {},
  "endDate": "2024-07-08T13:12:01Z",
  "id": "string",
  "name": "string",
  "startDate": "2024-07-08T13:12:01Z",
  "status": "inprogress"
}

Properties

Job

Name	Type	Required	Description
data	object	No	No description
endDate	string(date-time)	No	End date of the job
id	string(uuid)	No	No description
name	string	No	No description
startDate	string(date-time)	No	Start date of the job
status	string	No	No description

Enumerated Values

Property	Value
status	inprogress
status	failed
status	completed

LayoutOptionsA4

{
  "footer": null,
  "locale": "en-us",
  "margins": [
    0,
    0,
    0,
    0
  ],
  "noEnergiencyFooter": true,
  "format": "a4",
  "orientation": "landscape",
  "hideFooterOnFirstPage": false
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	LayoutOptionsItem	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» format	string	No	No description
» orientation	string	Yes	No description
» hideFooterOnFirstPage	boolean	No	No description

Enumerated Values

Property	Value
format	a4
orientation	landscape
orientation	portrait

LayoutOptionsItem

{
  "footer": null,
  "locale": "en-us",
  "margins": [
    0,
    0,
    0,
    0
  ],
  "noEnergiencyFooter": true
}

Properties

Name	Type	Required	Description
footer	null,string	No	No description
locale	null,string	No	No description
margins	[integer]	No	No description
noEnergiencyFooter	boolean	No	Whether the energiency footer is displayed

Enumerated Values

Property	Value
locale	null
locale	de
locale	en-us
locale	en-be
locale	en-gb
locale	es
locale	fr
locale	it
locale	pt-br

LayoutOptionsScreen

{
  "footer": null,
  "locale": "en-us",
  "margins": [
    0,
    0,
    0,
    0
  ],
  "noEnergiencyFooter": true,
  "format": "screen"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	LayoutOptionsItem	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» format	string	No	No description

Enumerated Values

Property	Value
format	screen

Meter

{
  "siteId": "string",
  "tags": {
    "property1": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    },
    "property2": {
      "id": "string",
      "name": "string",
      "categoryName": "string",
      "color": "string",
      "description": "string"
    }
  },
  "id": "string",
  "description": null,
  "parentId": null,
  "icon": "speedometer",
  "sourceId": null,
  "dataType": null,
  "missingPolicy": null,
  "offset": "PT0H",
  "shift": "PT0H",
  "relation": null,
  "source": null,
  "responsibleSector": null,
  "formulaResponsible": null,
  "responsible": null,
  "billing": null,
  "color": null,
  "lowerBound": null,
  "upperBound": null,
  "aggregationPolicy": "avg",
  "name": "string",
  "quantityType": "numeric",
  "timestep": "P0D",
  "unit": null,
  "virtual": null,
  "tagIds": [
    "string"
  ],
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "isAuthor": null,
  "role": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» siteId	string(uuid)	No	ID of the site
» tags	object	No	Map of tags attached to meter by id
»» **additionalProperties**	TagRef	No	No description

and

Name	Type	Required	Description
» *anonymous*	Id	No	No description

and

Name	Type	Required	Description
» *anonymous*	MeterParam	No	For required param see MeterParamRequired

and

Name	Type	Required	Description
» *anonymous*	MeterParamRequired	No	Meter's required param

and

Name	Type	Required	Description
» *anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
» *anonymous*	AccessAttributes	No	No description

MeterDateRange

{
  "firstDate": null,
  "lastDate": null
}

Properties

Name	Type	Required	Description
firstDate	string,null(date-time)	No	Date time of the first point, as ISO-8601 string
lastDate	string,null(date-time)	No	Date time of the last point, as ISO-8601 string

MeterExportParam

{
  "aggregationPolicy": "avg",
  "id": "string",
  "meterId": "string",
  "name": null,
  "unit": null
}

Properties

Name	Type	Required	Description
aggregationPolicy	string	No	Override the aggregation policy of the meter
id	string(uuid)	No	The id of the required meter
meterId	string(uuid)	No	The id of the required meter
name	null,string	No	The name of the meter
unit	null,string	No	The unit of the meter

Enumerated Values

Property	Value
aggregationPolicy	avg
aggregationPolicy	count
aggregationPolicy	max
aggregationPolicy	min
aggregationPolicy	sum
aggregationPolicy	stddev
aggregationPolicy	stddev_pop
aggregationPolicy	stddev_samp
aggregationPolicy	variance
aggregationPolicy	var_pop
aggregationPolicy	var_samp
aggregationPolicy	median

MeterParam

{
  "description": null,
  "parentId": null,
  "icon": "speedometer",
  "sourceId": null,
  "dataType": null,
  "missingPolicy": null,
  "offset": "PT0H",
  "shift": "PT0H",
  "relation": null,
  "source": null,
  "responsibleSector": null,
  "formulaResponsible": null,
  "responsible": null,
  "billing": null,
  "color": null,
  "lowerBound": null,
  "upperBound": null,
  "aggregationPolicy": "avg",
  "name": "string",
  "quantityType": "numeric",
  "timestep": "P0D",
  "unit": null,
  "virtual": null,
  "tagIds": [
    "string"
  ]
}

Properties

For required param see MeterParamRequired

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» description	string,null	No	No description
» parentId	string,null(uuid)	No	ID of the parent element (if null, the meter will be put at the root of the perimeter). Can only be null, or the ID of a Folder element, or the ID of a Site element.
» icon	string,null	No	Icon used to display this meter in the Meters UI
» sourceId	string,null	No	Source ID of the meter. This identifier can be defined by the user to link a meter to an external data source.
» dataType	string,null(uuid)	No	ID of the data type
» missingPolicy	string,null	No	Strategy used for filling missing data
» offset	string,null	No	Offset of the meter
» shift	string,null	No	Shift of the meter
» relation	string,null	No	Relation of the virtual meter
» source	string,null	No	No description
» responsibleSector	string,null	No	No description
» formulaResponsible	string,null	No	No description
» responsible	string,null	No	No description
» billing	string,null	No	No description
» color	string,null	No	Meter's color
» lowerBound	number,null	No	The lower bound used to crop data values (bound value included)
» upperBound	number,null	No	The upper bound used to crop data values (bound value included)

and

Name	Type	Required	Description
*anonymous*	any	No	No description

and

Name	Type	Required	Description
*anonymous*	MeterParamBase	No	No description

MeterParamBase

{
  "aggregationPolicy": "avg",
  "name": "string",
  "quantityType": "numeric",
  "timestep": "P0D",
  "unit": null,
  "virtual": null,
  "tagIds": [
    "string"
  ]
}

Properties

Name	Type	Required	Description
aggregationPolicy	string	No	Aggregation operator
name	string	No	Name of the meter
quantityType	string	No	Type of values in meter data
timestep	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
unit	string,null	No	Unit symbol included in the data type
virtual	boolean,null	No	Whether this is a virtual meter
tagIds	[string]	No	Id of tags attached to this meter

Enumerated Values

Property	Value
aggregationPolicy	avg
aggregationPolicy	sum
aggregationPolicy	median
aggregationPolicy	min
aggregationPolicy	max
aggregationPolicy	count

MeterParamRequired

{}

Properties

Meter's required param

None

MeterRef

{
  "role": null,
  "aggregationPolicy": "avg",
  "name": "string",
  "quantityType": "numeric",
  "timestep": "P0D",
  "unit": null,
  "virtual": null,
  "tagIds": [
    "string"
  ]
}

Properties

Schema for meter reference use in action, alert and dashboard

allOf

Name	Type	Required	Description
*anonymous*	AccessRole	No	No description

and

Name	Type	Required	Description
*anonymous*	MeterParamBase	No	No description

PasswordConfiguration

{
  "minimumSize": 6,
  "numericCharacter": false,
  "specialCharacter": false,
  "uppercaseCharacter": false
}

Properties

Password configuration details

Name	Type	Required	Description
minimumSize	number	No	Define the minimum length required for a password
numericCharacter	boolean	No	Enable the requirement to use at least one number in a password
specialCharacter	boolean	No	Enable the requirement to use at least one special character in a password
uppercaseCharacter	boolean	No	Enable the requirement to use at least one uppercase character in a password

Perimeter

[
  {
    "type": "site",
    "id": "string",
    "description": null,
    "location": null,
    "name": "string",
    "timezone": "string",
    "access": null,
    "creationDate": "2024-07-08T13:12:01Z",
    "creationUserId": "string",
    "modificationDate": null,
    "modificationUserId": null,
    "isAuthor": null,
    "role": null
  }
]

Properties

oneOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» type	string	Yes	No description

allOf

Name	Type	Required	Description
» *anonymous*	Site	No	No description

and

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» type	string	No	No description

xor

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» type	string	Yes	No description

allOf

Name	Type	Required	Description
»» *anonymous*	Folder	No	No description

and

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» type	string	No	No description

xor

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» type	string	Yes	No description

allOf

Name	Type	Required	Description
»»» *anonymous*	Meter	No	No description

and

Name	Type	Required	Description
»»» *anonymous*	object	No	No description
»»»» type	string	No	No description

Enumerated Values

Property	Value
type	site
type	site
type	folder
type	folder
type	meter
type	meter

PerimeterParam

[
  {
    "type": "site",
    "description": null,
    "id": "string",
    "location": null,
    "name": "string",
    "timezone": "string",
    "access": null
  }
]

Properties

oneOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» type	string	Yes	No description

allOf

Name	Type	Required	Description
» *anonymous*	SiteParam	No	No description

and

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» type	string	Yes	No description
»» id	string	No	ID of the item to update otherwise create it

xor

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» type	string	Yes	No description

allOf

Name	Type	Required	Description
»» *anonymous*	FolderBaseParam	No	No description

and

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» type	string	Yes	No description
»»» path	string	No	Location of the item in the perimeter with parents name
»»» id	string	No	ID of the item to update otherwise create it

xor

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» type	string	Yes	No description

allOf

Name	Type	Required	Description
»»» *anonymous*	MeterParam	No	For required param see MeterParamRequired

and

Name	Type	Required	Description
»»» *anonymous*	MeterParamRequired	No	Meter's required param

and

Name	Type	Required	Description
»»» *anonymous*	object	No	No description
»»»» type	string	Yes	No description
»»»» path	string	No	Location of the item in the perimeter with parents name
»»»» id	string	No	ID of the item to update otherwise create it

Enumerated Values

Property	Value
type	site
type	site
type	folder
type	folder
type	meter
type	meter

PolynomialRegression

{
  "equation": "string",
  "name": "string",
  "r2": 0
}

Properties

Name	Type	Required	Description
equation	string	No	No description
name	string	No	human-readable version of the equation
r2	number	No	Coefficient of determination

PolynomialRegressionExport

{
  "property1": {
    "equation": "string",
    "name": "string",
    "r2": 0
  },
  "property2": {
    "equation": "string",
    "name": "string",
    "r2": 0
  }
}

Properties

PolynomialRegressionExport

Name	Type	Required	Description
**additionalProperties**	object	No	Map of values by y meter's id
» equation	string	No	No description
» name	string	No	human-readable version of the equation
» r2	number	No	Coefficient of determination

PolynomialRegressionExportParam

{
  "endDate": "2024-07-08T13:12:01Z",
  "startDate": "2024-07-08T13:12:01Z",
  "timestep": "string",
  "timezone": "string",
  "xMeter": {
    "aggregationPolicy": "avg",
    "formula": "string",
    "id": "string",
    "name": null,
    "quantityType": "string",
    "timestep": "P0D"
  },
  "yMeters": [
    {
      "aggregationPolicy": "avg",
      "formula": "string",
      "id": "string",
      "name": null,
      "quantityType": "string",
      "timestep": "P0D"
    }
  ]
}

Properties

PolynomialRegressionExportParam

Name	Type	Required	Description
endDate	string(date-time)	Yes	date time as ISO8601
startDate	string(date-time)	Yes	date time as ISO8601
timestep	string	No	No description
timezone	string	No	No description
xMeter	any	Yes	No description

oneOf

Name	Type	Required	Description
» *anonymous*	FormulaExportParam	No	No description

xor

Name	Type	Required	Description
» *anonymous*	MeterExportParam	No	No description

continued

Name	Type	Required	Description
yMeters	[oneOf]	Yes	No description
» degree	number	Yes	No description

oneOf

Name	Type	Required	Description
» *anonymous*	FormulaExportParam	No	No description

xor

Name	Type	Required	Description
» *anonymous*	MeterExportParam	No	No description

ProportionConfiguration

{
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "series": [
      {
        "type": "formula",
        "id": "string",
        "title": "string",
        "aggregationPolicy": "avg",
        "formula": "string",
        "quantityType": "string",
        "timestep": "P0D",
        "shift": null,
        "color": null,
        "decimals": null
      }
    ],
    "timestep": "P0D"
  },
  "options": {
    "view": "donut",
    "showPercent": true,
    "showValue": false,
    "showLegend": true
  },
  "title": "string",
  "type": "proportion"
}

Properties

Name	Type	Required	Description
data	object	No	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» series	[allOf]	Yes	No description

allOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
» timestep	ExportTimestepNullable	No	No description
options	any	No	No description

allOf

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» view	string	No	No description
»» showPercent	boolean	No	No description
»» showValue	boolean	No	No description

and

Name	Type	Required	Description
» *anonymous*	ChartOptionsBase	No	No description

continued

Name	Type	Required	Description
title	string	No	No description
type	string	Yes	No description

Enumerated Values

Property	Value
view	donut
type	proportion

RadarConfiguration

{
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "series": [
      {
        "type": "formula",
        "id": "string",
        "title": "string",
        "aggregationPolicy": "avg",
        "formula": "string",
        "quantityType": "string",
        "timestep": "P0D",
        "shift": null,
        "color": null,
        "decimals": null
      }
    ],
    "statistics": [
      "sum"
    ]
  },
  "options": {
    "showLegend": true
  },
  "type": "radar"
}

Properties

Name	Type	Required	Description
data	object	Yes	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» series	[oneOf]	Yes	No description

allOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
» statistics	[StatisticEnum]	No	List of the statistics to display
options	ChartOptionsBase	No	No description
type	string	Yes	No description

Enumerated Values

Property	Value
type	radar

RelationValidationParam

{
  "meterId": "string",
  "relation": "string"
}

Properties

Name	Type	Required	Description
meterId	string	No	The ID of the meter having this relation
relation	string	Yes	The relation to check

RelationValidationResult

{
  "errors": [
    {
      "message": "string",
      "type": "string"
    }
  ],
  "success": true,
  "warnings": [
    {
      "deprecation": "string",
      "message": "string",
      "replacement": "string",
      "type": "string"
    }
  ]
}

Properties

Name	Type	Required	Description
errors	[object]	No	No description
» message	string	No	No description
» type	string	No	No description
success	boolean	No	No description
warnings	[object]	No	No description
» deprecation	string	No	No description
» message	string	No	No description
» replacement	string	No	No description
» type	string	No	No description

Report

{
  "id": "string",
  "isAuthor": null,
  "role": null,
  "name": "string",
  "parentId": null,
  "description": null,
  "isDraft": false,
  "timezone": "UTC",
  "styles": {
    "font": "string"
  },
  "layout": {
    "options": {
      "footer": null,
      "locale": "en-us",
      "margins": [
        0,
        0,
        0,
        0
      ],
      "noEnergiencyFooter": true,
      "format": "screen"
    }
  },
  "dateRange": null,
  "timestep": "P0D",
  "variables": [
    {
      "id": "string",
      "name": "string",
      "type": "meter",
      "value": "string"
    }
  ],
  "widgets": [
    {
      "options": {
        "decimals": null,
        "backgroundImageUrl": "string"
      },
      "id": "string",
      "layout": {
        "col": 0,
        "row": 0,
        "width": 1,
        "height": 1
      },
      "data": {
        "dateRange": {
          "offset": -1,
          "type": "relative",
          "unit": "day"
        },
        "series": [
          {
            "type": "formula",
            "id": "string",
            "title": "string",
            "aggregationPolicy": "avg",
            "formula": "string",
            "quantityType": "string",
            "timestep": "P0D",
            "shift": null,
            "color": "#ff5263",
            "decimals": null,
            "statistic": "sum",
            "width": 0,
            "height": 0,
            "x": 0,
            "y": 0,
            "bgColor": "#c5f6fa",
            "fontSize": "normal",
            "fontWeight": "normal",
            "italic": false,
            "underline": false
          }
        ]
      },
      "type": "synoptic"
    }
  ],
  "meterIds": [
    "string"
  ],
  "meters": {
    "property1": {
      "role": null,
      "aggregationPolicy": "avg",
      "name": "string",
      "quantityType": "numeric",
      "timestep": "P0D",
      "unit": null,
      "virtual": null,
      "tagIds": [
        "string"
      ]
    },
    "property2": {
      "role": null,
      "aggregationPolicy": "avg",
      "name": "string",
      "quantityType": "numeric",
      "timestep": "P0D",
      "unit": null,
      "virtual": null,
      "tagIds": [
        "string"
      ]
    }
  },
  "report": {
    "state": "sent",
    "generationDate": "2024-07-08T13:12:01Z",
    "sendingDate": "2024-07-08T13:12:01Z",
    "templateId": "string"
  },
  "templateName": "string"
}

Properties

Report

Name	Type	Required	Description
Report	any	No	No description

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	AccessAttributes	No	No description

and

Name	Type	Required	Description
*anonymous*	DashboardBase	No	Schema for commun editable properties of dashboard and report

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» meterIds	[string]	No	Meters' id used in the reports
» meters	object	No	No description
»» **additionalProperties**	MeterRef	No	Schema for meter reference use in action, alert and dashboard
» report	object	No	No description
»» state	string	No	No description
»» generationDate	string(date-time)	No	No description
»» sendingDate	string(date-time)	No	No description
»» templateId	string(uuid)	No	No description
» templateName	string	No	No description

Enumerated Values

Property	Value
state	sent
state	error
state	created

ResetPasswordParam

{
  "customerCode": "string",
  "email": "user@example.com"
}

Properties

Name	Type	Required	Description
customerCode	string	Yes	No description
email	string(email)	Yes	No description

SankeyConfiguration

{
  "data": {
    "aggregationPolicy": "sum",
    "colorMode": "from",
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "rootNode": "string",
    "series": [
      {
        "type": "formula",
        "id": "string",
        "title": "string",
        "aggregationPolicy": "avg",
        "formula": "string",
        "quantityType": "string",
        "timestep": "P0D",
        "shift": null,
        "color": "string",
        "parent": null,
        "showNonMeasured": true,
        "decimals": null
      }
    ]
  },
  "title": "string",
  "type": "sankey"
}

Properties

Name	Type	Required	Description
data	object	Yes	No description
» aggregationPolicy	StatisticEnum	No	No description
» colorMode	string	No	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» rootNode	string(uuid)	No	The id of the dataset
» series	[allOf]	Yes	No description

allOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» parent	string,null(uuid)	No	The id of the dataset
»»» color	string	No	No description
»»» showNonMeasured	boolean	No	No description

and

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
» title	string	No	No description
» type	string	Yes	No description

Enumerated Values

Property	Value
colorMode	gradient
colorMode	to
colorMode	from
type	sankey

ScatterConfiguration

{
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "timestep": "P0D",
    "xAxis": {
      "type": "formula",
      "id": "string",
      "title": "string",
      "aggregationPolicy": "avg",
      "formula": "string",
      "quantityType": "string",
      "timestep": "P0D",
      "shift": null,
      "color": null
    },
    "yAxis": {
      "series": [
        {
          "type": "formula",
          "id": "string",
          "title": "string",
          "aggregationPolicy": "avg",
          "formula": "string",
          "quantityType": "string",
          "timestep": "P0D",
          "shift": null,
          "color": null,
          "decimals": null
        }
      ],
      "trendLines": [
        {
          "type": "equation",
          "color": "string",
          "id": "string",
          "title": null,
          "equation": "string"
        }
      ],
      "max": null,
      "min": null
    },
    "zAxis": {
      "type": "formula",
      "id": "string",
      "title": "string",
      "aggregationPolicy": "avg",
      "formula": "string",
      "quantityType": "string",
      "timestep": "P0D",
      "shift": null,
      "color": null
    }
  },
  "options": {
    "showLegend": true
  },
  "title": "string",
  "type": "scatter"
}

Properties

Name	Type	Required	Description
data	object	No	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» timestep	ExportTimestepNullable	No	No description
» xAxis	any	Yes	No description

anyOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	object	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

or

Name	Type	Required	Description
»» *anonymous*	AxisConfigurationBase	No	No description

or

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
» yAxis	any	Yes	No description

allOf

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» series	[allOf]	No	No description

allOf - discriminator: type

Name	Type	Required	Description
»»»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»»»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
»»» trendLines	[oneOf]	No	No description

oneOf

Name	Type	Required	Description
»»»» *anonymous*	TrendLineCustom	No	No description

xor

Name	Type	Required	Description
»»»» *anonymous*	TrendLineLinear	No	No description

xor

Name	Type	Required	Description
»»»» *anonymous*	TrendLinePolynomial	No	No description

and

Name	Type	Required	Description
»»» *anonymous*	AxisConfigurationBase	No	No description

continued

Name	Type	Required	Description
»» zAxis	any	No	No description

anyOf - discriminator: type

Name	Type	Required	Description
»»» *anonymous*	object	No	No description

oneOf

Name	Type	Required	Description
»»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»»» *anonymous*	DashboardVariableDataset	No	No description

or

Name	Type	Required	Description
»»» *anonymous*	DatasetDecimals	No	No description

or

Name	Type	Required	Description
»»» *anonymous*	object	No	No description
»»»» enabled	boolean	No	No description
»»»» gradient	GradientPercent	No	Gradient of colors applied on scatter points, depending on the value on Z axis

or

Name	Type	Required	Description
»»» *anonymous*	AxisConfigurationBase	No	No description

or

Name	Type	Required	Description
»»» *anonymous*	string,null	No	No description

continued

Name	Type	Required	Description
»» options	ChartOptionsBase	No	No description
»» title	string	No	No description
»» type	string	Yes	No description

Enumerated Values

Property	Value
type	scatter

SchedulingDaily

{
  "dateTime": {
    "hour": "string"
  },
  "frequency": "daily"
}

Properties

SchedulingDaily

Name	Type	Required	Description
dateTime	object	No	No description
» hour	string	Yes	No description
frequency	string	No	No description

Enumerated Values

Property	Value
frequency	daily

SchedulingMonthly

{
  "dateTime": {
    "day": 0,
    "hour": "string"
  },
  "frequency": "monthly"
}

Properties

SchedulingMonthly

Name	Type	Required	Description
dateTime	object	No	No description
» day	number	Yes	No description
» hour	string	Yes	No description
frequency	string	No	No description

Enumerated Values

Property	Value
frequency	monthly

SchedulingWeekly

{
  "dateTime": {
    "days": [
      1
    ],
    "hour": "string"
  },
  "frequency": "weekly"
}

Properties

SchedulingWeekly

Name	Type	Required	Description
dateTime	object	No	No description
» days	[integer]	Yes	Array with ISO days of the week with 1 being Monday and 7 being Sunday
» hour	string	Yes	No description
frequency	string	No	No description

Enumerated Values

Property	Value
frequency	weekly

SchedulingYearly

{
  "dateTime": {
    "day": 1,
    "hour": "string",
    "month": 1
  },
  "frequency": "yearly"
}

Properties

SchedulingYearly

Name	Type	Required	Description
dateTime	object	No	No description
» day	number	Yes	No description
» hour	string	Yes	No description
» month	number	Yes	No description
frequency	string	No	No description

Enumerated Values

Property	Value
frequency	yearly

Settings

{
  "name": "string",
  "url": null,
  "appearance": {
    "logoUrl": null,
    "mainColor": null
  },
  "features": {},
  "passwordConfiguration": {
    "minimumSize": 6,
    "numericCharacter": false,
    "specialCharacter": false,
    "uppercaseCharacter": false
  },
  "timesteps": [
    "string"
  ],
  "timezone": "string",
  "google": {
    "domain": "string",
    "enabled": false,
    "logoURL": "string"
  },
  "ldap": {
    "bindDN": "string",
    "emailAttribute": "string",
    "enabled": true,
    "firstNameAttribute": "string",
    "identifierAttribute": "string",
    "lastNameAttribute": "string",
    "password": "string",
    "searchBase": "string",
    "searchFilter": "string",
    "url": "string"
  },
  "saml": {
    "enabled": false
  }
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» name	string	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» url	string,null	No	No description

and

Name	Type	Required	Description
*anonymous*	CustomerSettings	No	Settings of the customer

and

Name	Type	Required	Description
*anonymous*	AuthenticationPolicies	No	List of ways to be authenticated

SimpleGroupBy

"hour"

Properties

Groups the series by month, week, hour, day of week or or day of the year

Name	Type	Required	Description
*anonymous*	string,null	No	Groups the series by month, week, hour, day of week or or day of the year

Enumerated Values

Property	Value
anonymous	hour
anonymous	week
anonymous	dayOfWeek
anonymous	dayOfYear
anonymous	month
anonymous	null

Site

{
  "id": "string",
  "description": null,
  "location": null,
  "name": "string",
  "timezone": "string",
  "access": null,
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "isAuthor": null,
  "role": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» id	string(uuid)	No	ID of the site, defined by Energiency

and

Name	Type	Required	Description
*anonymous*	SiteParam	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
*anonymous*	AccessAttributes	No	No description

SiteParam

{
  "description": null,
  "id": "string",
  "location": null,
  "name": "string",
  "timezone": "string",
  "access": null
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» description	string,null	No	Description of the site
» id	string(uuid)	No	ID of the site, defined by Energiency
» location	array,null	No	Location of the site
» name	string	Yes	Name of the site
» timezone	string	Yes	Timezone

and

Name	Type	Required	Description
*anonymous*	AccessParam	No	Defined the access to a ressource and these sub ressources. Access keys are user's id or group's id. Access values are read to give read-only access, or write to give edit access.

SpeedometerConfiguration

{
  "data": {
    "statistic": "sum",
    "min": 0,
    "max": 0,
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    }
  },
  "options": {
    "suffix": null,
    "gradient": {
      "type": "value",
      "smooth": true,
      "stops": [
        {
          "color": "string",
          "offset": 0
        }
      ],
      "locked": true,
      "lockedParams": {
        "endDate": "2024-07-08T13:12:01Z",
        "startDate": "2024-07-08T13:12:01Z",
        "timestep": "P0D",
        "timezone": "UTC",
        "offsets": [
          0
        ]
      }
    },
    "showThresholdLabels": false
  },
  "title": "string",
  "type": "speedometer"
}

Properties

SpeedometerConfiguration

Name	Type	Required	Description
data	any	Yes	No description

anyOf

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» statistic	StatisticEnum	No	No description
»» min	number	No	No description
»» max	number	No	No description
»» dateRange	WidgetDateRangeConfiguration	No	No description

or - discriminator: type

Name	Type	Required	Description
» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»» *anonymous*	DashboardVariableDataset	No	No description

or

Name	Type	Required	Description
» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
options	object	No	No description
» suffix	string,null	No	Suffix to display in gauge
» gradient	any	No	Gradient colors applied on speedometer's background

allOf

Name	Type	Required	Description
»» *anonymous*	GradientBase	No	No description

and

Name	Type	Required	Description
»» *anonymous*	GradientLock	No	No description

continued

Name	Type	Required	Description
» showThresholdLabels	boolean	No	If true, show threshold labels
title	string	No	No description
type	string	Yes	No description

Enumerated Values

Property	Value
type	speedometer

Statistic

{
  "value": 0,
  "property1": 0,
  "property2": 0
}

Properties

Name	Type	Required	Description
**additionalProperties**	number(double)	No	Map of values by meterId.
value	number(double)	No	The total of the given statistic

StatisticConfiguration

{
  "data": {
    "statistic": "sum",
    "comparison": {
      "offset": 0,
      "type": "relative",
      "alignDayOfWeek": false,
      "showVariation": false
    },
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    }
  },
  "options": {
    "conditionalFormatting": null,
    "decimals": 0,
    "prefix": null,
    "showStatisticName": true,
    "showUnit": true,
    "size": "1.5rem",
    "suffix": null
  },
  "title": "string",
  "type": "statistic"
}

Properties

Name	Type	Required	Description
data	any	Yes	No description

anyOf

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» statistic	StatisticEnum	No	No description
»» comparison	any	No	No description

allOf

Name	Type	Required	Description
»»» *anonymous*	ComparisonConfiguration	No	No description

and

Name	Type	Required	Description
»»» *anonymous*	object	No	No description
»»»» showVariation	boolean	No	No description

continued

Name	Type	Required	Description
»»» dateRange	WidgetDateRangeConfiguration	No	No description

or - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

or

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
» options	object	No	No description
»» conditionalFormatting	object,null	No	Configuration of the conditional formatting
»»» enabled	boolean	No	No description
»»» rules	object	No	No description
»»»» **additionalProperties**	[ConditionalFormattingRule]	No	No description
»»» decimals	integer	No	Number of decimals to display in the statistic value
»»» prefix	string,null	No	Prefix to display in a statistic
»»» showStatisticName	boolean	No	Display the name of the statistic
»»» showUnit	boolean	No	Display the unit
»»» size	string	No	Font size
»»» suffix	string,null	No	Suffix to display in a statistic
»» title	string	No	No description
»» type	string	Yes	No description

Enumerated Values

Property	Value
type	statistic

StatisticEnum

"sum"

Properties

Name	Type	Required	Description
*anonymous*	string	No	No description

Enumerated Values

Property	Value
anonymous	sum
anonymous	average
anonymous	enumeration
anonymous	maximum
anonymous	minimum
anonymous	variance
anonymous	standardDeviation
anonymous	firstQuartile
anonymous	thirdQuartile
anonymous	median
anonymous	first
anonymous	last

StatisticExport

{
  "average": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "enumeration": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "first": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "firstQuartile": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "firstValue": {
    "value": "2024-07-08T13:12:01Z"
  },
  "last": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "lastValue": {
    "value": "2024-07-08T13:12:01Z"
  },
  "maximum": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "median": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "minimum": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "standardDeviation": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "sum": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "thirdQuartile": {
    "value": 0,
    "property1": 0,
    "property2": 0
  },
  "variance": {
    "value": 0,
    "property1": 0,
    "property2": 0
  }
}

Properties

[deprecated] Returned with no groupByMeters parameter

Name	Type	Required	Description
average	Statistic	No	No description
enumeration	Statistic	No	No description
first	Statistic	No	No description
firstQuartile	Statistic	No	No description
firstValue	object	No	No description
» value	string(date-time)	No	[deprecated] The date of the first quantity of the range
last	Statistic	No	No description
lastValue	object	No	No description
» value	string(date-time)	No	[deprecated] The date of the last quantity of the range
maximum	Statistic	No	No description
median	Statistic	No	No description
minimum	Statistic	No	No description
standardDeviation	Statistic	No	No description
sum	Statistic	No	No description
thirdQuartile	Statistic	No	No description
variance	Statistic	No	No description

StatisticExportParam

{
  "csvOptions": {
    "headers": [
      "name"
    ],
    "statistics": [
      "sum"
    ],
    "transpose": true
  },
  "dateRanges": [
    {
      "endDate": "2024-07-08T13:12:01Z",
      "startDate": "2024-07-08T13:12:01Z"
    }
  ],
  "groupByMeters": {
    "aggregationPolicy": "avg",
    "id": "string",
    "meterId": "string",
    "name": null,
    "unit": null
  },
  "meters": [
    {
      "aggregationPolicy": "avg",
      "formula": "string",
      "id": "string",
      "name": null,
      "quantityType": "string",
      "timestep": "P0D"
    }
  ],
  "offset": "P0D",
  "timezone": "UTC"
}

Properties

Name	Type	Required	Description
csvOptions	object	No	Options of the CSV export
» headers	[any]	No	List of headers to display in the CSV file
» statistics	[StatisticEnum]	No	List of statistics to display in the CSV file
» transpose	boolean	No	Indicate whether the CSV table is transposed or not
dateRanges	[ExportRange]	Yes	Range date to get
groupByMeters	MeterExportParam	No	No description
meters	[oneOf]	Yes	Meter ids to get

oneOf

Name	Type	Required	Description
» *anonymous*	FormulaExportParam	No	No description

xor

Name	Type	Required	Description
» *anonymous*	MeterExportParam	No	No description

continued

Name	Type	Required	Description
offset	string	No	By default the first meter offset is used. This parameter overrides the first meter offset. Should be a signed ISO8601 duration (Ex: '-P1D', 'P12D')
timezone	string	No	Output data will be converted to this timezone

StatisticFlatExport

[
  {
    "additionalProperties": null,
    "average": 0,
    "count": 0,
    "enumeration": 0,
    "first": 0,
    "firstQuartile": 0,
    "firstValue": "2024-07-08T13:12:01Z",
    "last": 0,
    "lastValue": "2024-07-08T13:12:01Z",
    "maximum": 0,
    "median": 0,
    "meterId": "string",
    "minimum": 0,
    "standardDeviation": 0,
    "sum": 0,
    "thirdQuartile": 0,
    "variance": 0
  }
]

Properties

Returned with groupByMeters.

Name	Type	Required	Description
*anonymous*	[StatisticFlatExportItem]	No	Returned with groupByMeters.

StatisticFlatExportItem

{
  "additionalProperties": null,
  "average": 0,
  "count": 0,
  "enumeration": 0,
  "first": 0,
  "firstQuartile": 0,
  "firstValue": "2024-07-08T13:12:01Z",
  "last": 0,
  "lastValue": "2024-07-08T13:12:01Z",
  "maximum": 0,
  "median": 0,
  "meterId": "string",
  "minimum": 0,
  "standardDeviation": 0,
  "sum": 0,
  "thirdQuartile": 0,
  "variance": 0
}

Properties

Name	Type	Required	Description
additionalProperties	any	No	Additionnal keys will be use in case of groupByMeters. keys will be {meterId}.
average	number(double)	No	No description
count	number(double)	No	No description
enumeration	number(double)	No	No description
first	number(double)	No	The first quantity of the range
firstQuartile	number(double)	No	No description
firstValue	string(date-time)	No	[deprecated] The date of the first quantity of the range
last	number(double)	No	The last quantity of the range
lastValue	string(date-time)	No	[deprecated] The date of the last quantity of the range
maximum	number(double)	No	No description
median	number(double)	No	No description
meterId	string	No	No description
minimum	number(double)	No	No description
standardDeviation	number(double)	No	No description
sum	number(double)	No	No description
thirdQuartile	number(double)	No	No description
variance	number(double)	No	No description

StatisticsChartConfiguration

{
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "xAxis": {
      "label": null
    },
    "y2Axis": {
      "label": null,
      "series": [
        {
          "type": "statistic",
          "id": "string",
          "title": "string",
          "statistic": "sum",
          "decimals": null,
          "color": "string",
          "lineStyle": "plain",
          "lineTension": true,
          "lineWidth": 2,
          "stacked": false,
          "view": "bar"
        }
      ],
      "showZero": true
    },
    "yAxis": {
      "label": null,
      "series": [
        {
          "type": "statistic",
          "id": "string",
          "title": "string",
          "statistic": "sum",
          "decimals": null,
          "color": "string",
          "lineStyle": "plain",
          "lineTension": true,
          "lineWidth": 2,
          "stacked": false,
          "view": "bar"
        }
      ],
      "showZero": true
    }
  },
  "options": {
    "sort": null,
    "view": "string",
    "showLegend": true
  },
  "title": "string",
  "type": "statistics-chart"
}

Properties

Name	Type	Required	Description
data	object	No	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» xAxis	any	Yes	No description

anyOf

Name	Type	Required	Description
»» *anonymous*	AxisLabel	No	No description

or

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» series	[oneOf]	No	No description

oneOf

Name	Type	Required	Description
»»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»»» *anonymous*	DashboardVariableDataset	No	No description

continued

Name	Type	Required	Description
»»» y2Axis	any	No	No description

allOf

Name	Type	Required	Description
»»»» *anonymous*	AxisLabel	No	No description

and

Name	Type	Required	Description
»»»» *anonymous*	object	No	No description
»»»»» series	[allOf]	No	No description

allOf

Name	Type	Required	Description
»»»»»» *anonymous*	DashboardStatisticDataset	No	Serie of values defined by a statistic

and

Name	Type	Required	Description
»»»»»» *anonymous*	DatasetDecimals	No	No description

and

Name	Type	Required	Description
»»»»»» *anonymous*	ChartDatasetProperties	No	No description

continued

Name	Type	Required	Description
»»»»» showZero	boolean	No	No description
»»»» yAxis	any	Yes	No description

allOf

Name	Type	Required	Description
»»»»» *anonymous*	AxisLabel	No	No description

and

Name	Type	Required	Description
»»»»» *anonymous*	object	No	No description
»»»»»» series	[allOf]	No	No description

allOf

Name	Type	Required	Description
»»»»»»» *anonymous*	DashboardStatisticDataset	No	Serie of values defined by a statistic

and

Name	Type	Required	Description
»»»»»»» *anonymous*	DatasetDecimals	No	No description

and

Name	Type	Required	Description
»»»»»»» *anonymous*	ChartDatasetProperties	No	No description

continued

Name	Type	Required	Description
»»»»»» showZero	boolean	No	No description
»»»»» options	any	No	No description

allOf

Name	Type	Required	Description
»»»»»» *anonymous*	object	No	No description
»»»»»»» sort	object,null	No	Display datasets sort by one statistic value
»»»»»»»» by	StatisticEnum	Yes	No description
»»»»»»»» order	string	Yes	No description
»»»»»»» view	string	No	Type of the chart

and

Name	Type	Required	Description
»»»»»» *anonymous*	ChartOptionsBase	No	No description

continued

Name	Type	Required	Description
»»»»» title	string	No	No description
»»»»» type	string	Yes	No description

Enumerated Values

Property	Value
order	asc
order	desc
type	statistics-chart

StatisticsTableConfiguration

{
  "type": "object",
  "properties": {
    "data": {
      "type": "object",
      "properties": {
        "comparisons": {
          "type": "array",
          "items": {
            "type": "object",
            "properties": {
              "offset": {
                "description": "Offset of the comparison range. For instance, `-1` will display the previous date range.\n",
                "type": "integer",
                "examples": [
                  -1
                ]
              },
              "type": {
                "enum": [
                  "relative"
                ]
              },
              "alignDayOfWeek": {
                "description": "Enable or not the alignment of day of week",
                "type": "boolean",
                "default": false
              }
            },
            "required": [
              "type"
            ]
          }
        },
        "dateRange": {
          "oneOf": [
            {
              "type": "object",
              "properties": {
                "offset": {
                  "anyOf": [
                    {
                      "type": "integer",
                      "minimum": -1,
                      "maximum": 0
                    },
                    {
                      "type": "array",
                      "minLength": 2,
                      "maxLength": 2,
                      "items": {
                        "type": "number",
                        "minimum": -6,
                        "maximum": 1
                      }
                    }
                  ]
                },
                "type": {
                  "type": "string",
                  "enum": [
                    "relative"
                  ]
                },
                "unit": {
                  "type": [
                    "string",
                    "null"
                  ],
                  "enum": [
                    "day",
                    "week",
                    "month",
                    "year"
                  ]
                }
              },
              "required": [
                "type",
                "unit",
                "offset"
              ]
            },
            {
              "type": "object",
              "properties": {
                "endDate": {
                  "description": "End date to retrieve  widget's data (as ISO8601) (excluded)",
                  "type": "string",
                  "format": "date-time",
                  "examples": [
                    "2018-01-01T01:00:00Z"
                  ]
                },
                "startDate": {
                  "description": "Start date to retrieve widget's data (as ISO8601) (included)",
                  "type": "string",
                  "format": "date-time",
                  "examples": [
                    "2018-01-01T03:00:00Z"
                  ]
                },
                "type": {
                  "type": "string",
                  "enum": [
                    "custom"
                  ]
                }
              },
              "required": [
                "startDate",
                "endDate"
              ],
              "title": "WidgetDateRangeCustom"
            },
            {
              "description": "Date range relative to the Dashboard date range",
              "type": "object",
              "properties": {
                "type": {
                  "type": "string",
                  "enum": [
                    "before",
                    "full",
                    "since-start"
                  ]
                },
                "unit": {
                  "type": "string",
                  "enum": [
                    "day",
                    "week",
                    "month",
                    "year"
                  ]
                }
              },
              "required": [
                "type",
                "unit"
              ],
              "title": "WidgetDateRangeDashboardRelative"
            },
            {
              "type": [
                "string",
                "null"
              ]
            }
          ]
        },
        "series": {
          "type": "array",
          "items": {
            "allOf": [
              {
                "oneOf": [
                  {
                    "type": "object",
                    "properties": {
                      "type": {
                        "type": "string",
                        "enum": [
                          "meter"
                        ]
                      }
                    },
                    "allOf": [
                      {
                        "type": "object",
                        "properties": {
                          "id": {
                            "description": "The id of the dataset",
                            "type": "string",
                            "format": "uuid"
                          },
                          "title": {
                            "description": "Title used to name the dataset in the widget. If not defined, the native name of the dataset will be used.\n",
                            "type": "string"
                          }
                        },
                        "required": [
                          "id"
                        ]
                      },
                      {
                        "type": "object",
                        "required": [
                          "meterId"
                        ],
                        "properties": {
                          "meterId": {
                            "description": "ID of the meter",
                            "type": "string",
                            "format": "uuid",
                            "examples": [
                              "caa8b54a-eb5e-4134-8ae2-a3946a428ec7"
                            ]
                          },
                          "unit": {
                            "description": "Unit used to display meter values",
                            "type": [
                              "string",
                              "null"
                            ],
                            "examples": [
                              "kg"
                            ]
                          }
                        }
                      }
                    ],
                    "required": [
                      "type"
                    ]
                  },
                  {
                    "description": "Serie of values defined by a formula",
                    "properties": {
                      "type": {
                        "type": "string",
                        "enum": [
                          "formula"
                        ]
                      }
                    },
                    "allOf": [
                      {
                        "type": "object",
                        "properties": {
                          "id": {
                            "description": "The id of the dataset",
                            "type": "string",
                            "format": "uuid"
                          },
                          "title": {
                            "description": "Title used to name the dataset in the widget. If not defined, the native name of the dataset will be used.\n",
                            "type": "string"
                          }
                        },
                        "required": [
                          "id"
                        ]
                      },
                      {
                        "type": "object",
                        "required": [
                          "type"
                        ],
                        "properties": {
                          "aggregationPolicy": {
                            "description": "Override the aggregation policy of the meter",
                            "type": "string",
                            "enum": [
                              "avg",
                              "count",
                              "max",
                              "min",
                              "sum",
                              "stddev",
                              "stddev_pop",
                              "stddev_samp",
                              "variance",
                              "var_pop",
                              "var_samp",
                              "median"
                            ]
                          },
                          "formula": {
                            "description": "Formula (Required if using formula)",
                            "type": "string"
                          },
                          "quantityType": {
                            "description": "Type of values in meter data",
                            "type": "string"
                          },
                          "timestep": {
                            "oneOf": [
                              {
                                "description": "Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y",
                                "type": "string",
                                "default": "P0D",
                                "pattern": "^P(?!$)(\\d+Y)?(\\d+M)?(\\d+W)?(\\d+D)?(T(?=\\d)(\\d+H)?(\\d+M)?(\\d+S)?)?$"
                              },
                              {
                                "type": "null"
                              }
                            ]
                          },
                          "shift": {
                            "description": "Shift of the formula",
                            "type": [
                              "string",
                              "null"
                            ]
                          },
                          "color": {
                            "description": "Formula's color",
                            "type": [
                              "string",
                              "null"
                            ],
                            "examples": [
                              "#34af12"
                            ]
                          },
                          "type": {
                            "type": "string",
                            "enum": [
                              "formula"
                            ]
                          }
                        }
                      }
                    ],
                    "required": [
                      "type"
                    ]
                  },
                  {
                    "properties": {
                      "type": {
                        "type": "string",
                        "enum": [
                          "variable"
                        ]
                      }
                    },
                    "allOf": [
                      {
                        "type": "object",
                        "properties": {
                          "id": {
                            "description": "The id of the dataset",
                            "type": "string",
                            "format": "uuid"
                          },
                          "title": {
                            "description": "Title used to name the dataset in the widget. If not defined, the native name of the dataset will be used.\n",
                            "type": "string"
                          }
                        },
                        "required": [
                          "id"
                        ]
                      },
                      {
                        "type": "object",
                        "required": [
                          "variableId",
                          "type"
                        ],
                        "properties": {
                          "variableId": {
                            "description": "ID of the variable",
                            "type": "string",
                            "format": "uuid",
                            "examples": [
                              "9c395f5c-3bc0-4f27-9c47-c7ebd71ae246"
                            ]
                          },
                          "type": {
                            "description": "type of the data",
                            "type": "string",
                            "enum": [
                              "variable"
                            ]
                          },
                          "unit": {
                            "description": "Unit used to display variable values",
                            "type": [
                              "string",
                              "null"
                            ],
                            "examples": [
                              "kg"
                            ]
                          }
                        }
                      }
                    ],
                    "required": [
                      "type"
                    ]
                  }
                ],
                "discriminator": {
                  "propertyName": "type"
                }
              },
              {
                "type": "object",
                "properties": {
                  "decimals": {
                    "description": "Number of decimals used to display dataset values",
                    "type": [
                      "number",
                      "null"
                    ],
                    "maximum": 9,
                    "minimum": 0
                  }
                }
              }
            ],
            "description": "Serie of values from a meter"
          }
        },
        "statistics": {
          "description": "List of the statistics to display",
          "type": "array",
          "items": {
            "type": "string",
            "enum": [
              "sum",
              "average",
              "enumeration",
              "maximum",
              "minimum",
              "variance",
              "standardDeviation",
              "firstQuartile",
              "thirdQuartile",
              "median",
              "first",
              "last"
            ]
          }
        }
      },
      "required": [
        "series"
      ]
    },
    "options": {
      "allOf": [
        {
          "type": "object",
          "properties": {
            "columnState": {
              "description": "Columns state",
              "type": [
                "array",
                "null"
              ],
              "items": {
                "type": "object"
              }
            },
            "filterNullValues": {
              "description": "Whether filter null values",
              "type": "boolean",
              "default": false
            },
            "showColumnHeaders": {
              "description": "Whether the column headers should be displayed",
              "type": "boolean",
              "default": true
            },
            "showSidebar": {
              "description": "Whether the sidebar should be displayed",
              "type": "boolean",
              "default": false
            },
            "showUnitInHeaders": {
              "description": "Whether the column headers should display unit",
              "type": "boolean",
              "default": false
            },
            "sortState": {
              "description": "Sort state",
              "type": [
                "array",
                "null"
              ],
              "items": {
                "type": "object"
              }
            },
            "transpose": {
              "description": "Whether the rows and columns should be transposed",
              "type": "boolean",
              "default": false
            }
          }
        },
        {
          "type": [
            "object",
            "null"
          ],
          "description": "Configuration of the conditional formatting",
          "properties": {
            "enabled": {
              "type": "boolean"
            },
            "rules": {
              "type": "object",
              "additionalProperties": {
                "items": {
                  "type": "object",
                  "properties": {
                    "bgColor": {
                      "type": "string",
                      "examples": [
                        "#c5f6fa"
                      ]
                    },
                    "iconColor": {
                      "type": "string",
                      "examples": [
                        "#1864ab"
                      ]
                    },
                    "iconCss": {
                      "type": "string"
                    },
                    "id": {
                      "description": "ID of the rule",
                      "type": "string",
                      "format": "uuid",
                      "examples": [
                        "9c395f5c-3bc0-4f27-9c47-c7ebd71ae246"
                      ]
                    },
                    "operator": {
                      "type": "string",
                      "enum": [
                        ">",
                        ">=",
                        "<",
                        "<=",
                        "="
                      ]
                    },
                    "textColor": {
                      "type": "string",
                      "examples": [
                        "#0b7285"
                      ]
                    },
                    "threshold": {
                      "type": "number"
                    }
                  },
                  "required": [
                    "threshold",
                    "operator",
                    "id"
                  ]
                },
                "type": "array"
              },
              "propertyNames": {
                "anyOf": [
                  {
                    "type": "string",
                    "enum": [
                      "sum",
                      "average",
                      "enumeration",
                      "maximum",
                      "minimum",
                      "variance",
                      "standardDeviation",
                      "firstQuartile",
                      "thirdQuartile",
                      "median",
                      "first",
                      "last"
                    ]
                  },
                  {
                    "pattern": "^__[a-f0-9]{8}-[a-f0-9]{4}-[a-f0-9]{4}-[a-f0-9]{4}-[a-f0-9]{12}-(sum|average|enumeration|maximum|minimum|variance|standardDeviation|firstQuartile|thirdQuartile|median|first|last)__$"
                  }
                ]
              }
            }
          }
        }
      ]
    },
    "title": {
      "type": "string"
    },
    "type": {
      "type": "string",
      "enum": [
        "statistics-table"
      ]
    }
  },
  "required": [
    "type"
  ]
}

Properties

Name	Type	Required	Description
data	object	No	No description
» comparisons	[ComparisonConfiguration]	No	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» series	[allOf]	Yes	No description

allOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
» statistics	[StatisticEnum]	No	List of the statistics to display
options	any	No	No description

allOf

Name	Type	Required	Description
» *anonymous*	TableOptionsBase	No	No description

and

Name	Type	Required	Description
» *anonymous*	object,null	No	Configuration of the conditional formatting
»» enabled	boolean	No	No description
»» rules	object	No	No description
»»» **additionalProperties**	[ConditionalFormattingRule]	No	No description

continued

Name	Type	Required	Description
»» title	string	No	No description
»» type	string	Yes	No description

Enumerated Values

Property	Value
type	statistics-table

SynopticConfiguration

{
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "series": [
      {
        "type": "formula",
        "id": "string",
        "title": "string",
        "aggregationPolicy": "avg",
        "formula": "string",
        "quantityType": "string",
        "timestep": "P0D",
        "shift": null,
        "color": "#ff5263",
        "decimals": null,
        "statistic": "sum",
        "width": 0,
        "height": 0,
        "x": 0,
        "y": 0,
        "bgColor": "#c5f6fa",
        "fontSize": "normal",
        "fontWeight": "normal",
        "italic": false,
        "underline": false
      }
    ]
  },
  "options": {
    "backgroundImageUrl": "string"
  },
  "type": "synoptic"
}

Properties

Name	Type	Required	Description
data	object	Yes	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» series	[allOf]	No	No description

allOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

and

Name	Type	Required	Description
»» *anonymous*	SynopticElement	No	No description

and

Name	Type	Required	Description
»» *anonymous*	SynopticElementText	No	No description

continued

Name	Type	Required	Description
» options	object	No	No description
»» backgroundImageUrl	string	No	URL of the background image
» type	string	Yes	No description

Enumerated Values

Property	Value
type	synoptic

SynopticElement

{
  "id": "string",
  "statistic": "sum",
  "width": 0,
  "height": 0,
  "x": 0,
  "y": 0
}

Properties

Name	Type	Required	Description
id	string(uuid)	Yes	No description
statistic	StatisticEnum	Yes	No description
width	integer	Yes	No description
height	integer	Yes	No description
x	number	Yes	No description
y	number	Yes	No description

SynopticElementText

{
  "color": "#ff5263",
  "bgColor": "#c5f6fa",
  "fontSize": "normal",
  "fontWeight": "normal",
  "italic": false,
  "underline": false
}

Properties

Name	Type	Required	Description
color	string,null	No	No description
bgColor	string,null	No	No description
fontSize	string	No	No description
fontWeight	string	No	No description
italic	boolean	No	No description
underline	boolean	No	No description

Enumerated Values

Property	Value
fontSize	xsmall
fontSize	small
fontSize	normal
fontSize	large
fontSize	huge
fontWeight	normal
fontWeight	bold

TableOptionsBase

{
  "columnState": null,
  "filterNullValues": false,
  "showColumnHeaders": true,
  "showSidebar": false,
  "showUnitInHeaders": false,
  "sortState": null,
  "transpose": false
}

Properties

Name	Type	Required	Description
columnState	array,null	No	Columns state
filterNullValues	boolean	No	Whether filter null values
showColumnHeaders	boolean	No	Whether the column headers should be displayed
showSidebar	boolean	No	Whether the sidebar should be displayed
showUnitInHeaders	boolean	No	Whether the column headers should display unit
sortState	array,null	No	Sort state
transpose	boolean	No	Whether the rows and columns should be transposed

Tag

{
  "id": "string",
  "creationDate": "2024-07-08T13:12:01Z",
  "creationUserId": "string",
  "modificationDate": null,
  "modificationUserId": null,
  "name": "string",
  "description": null,
  "categoryId": "string",
  "icon": null,
  "categoryName": "string",
  "color": "string"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	Id	No	No description

and

Name	Type	Required	Description
*anonymous*	HistoricalObject	No	No description

and

Name	Type	Required	Description
*anonymous*	TagParam	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» categoryName	string	No	No description
» color	string	No	No description

TagParam

{
  "name": "string",
  "description": null,
  "categoryId": "string",
  "icon": null
}

Properties

Name	Type	Required	Description
name	string	Yes	No description
description	string,null	No	No description
categoryId	string(uuid)	Yes	No description
icon	null,string	No	No description

TagRef

{
  "id": "string",
  "name": "string",
  "categoryName": "string",
  "color": "string",
  "description": "string"
}

Properties

Name	Type	Required	Description
id	string(uuid)	No	No description
name	string	No	No description
categoryName	string	No	No description
color	string	No	No description
description	string	No	No description

Task

{
  "actionId": "string",
  "complexity": "string",
  "deadline": "2024-07-08T13:12:01Z",
  "description": "string",
  "id": "string",
  "startDate": "2024-07-08T13:12:01Z",
  "state": "NOT_STARTED",
  "supervisorId": "string",
  "title": "string"
}

Properties

Name	Type	Required	Description
actionId	string(uuid)	No	No description
complexity	string	No	No description
deadline	string(date-time)	No	No description
description	string	No	No description
id	string(uuid)	No	No description
startDate	string(date-time)	No	No description
state	string	No	No description
supervisorId	string	No	No description
title	string	No	No description

Enumerated Values

Property	Value
state	NOT_STARTED
state	STARTED
state	ENDED
state	PAUSED
state	CANCELED

TaskList

[
  {
    "actionId": "string",
    "complexity": "string",
    "deadline": "2024-07-08T13:12:01Z",
    "description": "string",
    "id": "string",
    "startDate": "2024-07-08T13:12:01Z",
    "state": "NOT_STARTED",
    "supervisorId": "string",
    "title": "string"
  }
]

Properties

Name	Type	Required	Description
*anonymous*	[Task]	No	No description

TaskParam

{
  "actionId": "string",
  "complexity": null,
  "deadline": null,
  "description": null,
  "startDate": null,
  "state": "string",
  "supervisorId": null,
  "title": "string"
}

Properties

Name	Type	Required	Description
actionId	string(uuid)	Yes	No description
complexity	null,string	No	No description
deadline	string,null(date-time)	No	No description
description	string,null	No	No description
startDate	string,null(date-time)	No	No description
state	string	Yes	No description
supervisorId	null,string	No	No description
title	string	Yes	No description

TextConfiguration

{
  "data": {
    "content": "string",
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "series": [
      {
        "type": "formula",
        "id": "string",
        "title": "string",
        "aggregationPolicy": "avg",
        "formula": "string",
        "quantityType": "string",
        "timestep": "P0D",
        "shift": null,
        "color": null,
        "decimals": null,
        "statistics": [
          "sum"
        ]
      }
    ]
  },
  "type": "text"
}

Properties

Name	Type	Required	Description
data	object	Yes	No description
» content	string	No	HTML content of the widget
» dateRange	WidgetDateRangeConfiguration	No	No description
» series	[allOf]	Yes	No description

allOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

and

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» statistics	[StatisticEnum]	No	List of the statistics to display

continued

Name	Type	Required	Description
»» type	string	Yes	No description

Enumerated Values

Property	Value
type	text

TextWidget

{
  "options": {
    "decimals": null
  },
  "id": "string",
  "layout": {
    "col": 0,
    "row": 0,
    "width": 1,
    "height": 1
  },
  "data": {
    "content": "string",
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "series": [
      {
        "type": "formula",
        "id": "string",
        "title": "string",
        "aggregationPolicy": "avg",
        "formula": "string",
        "quantityType": "string",
        "timestep": "P0D",
        "shift": null,
        "color": null,
        "decimals": null,
        "statistics": [
          "sum"
        ]
      }
    ]
  },
  "type": "text"
}

Properties

allOf

Name	Type	Required	Description
*anonymous*	WidgetBase	No	Schema for commun properties of widget

and

Name	Type	Required	Description
*anonymous*	TextConfiguration	No	No description

TimeseriesConfiguration

{
  "data": {
    "comparisons": [
      {
        "offset": 0,
        "type": "relative",
        "alignDayOfWeek": false
      }
    ],
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "groupBy": "hour",
    "timestep": "P0D",
    "y2Axis": {
      "series": [
        {
          "type": "formula",
          "id": "string",
          "title": "string",
          "aggregationPolicy": "avg",
          "formula": "string",
          "quantityType": "string",
          "timestep": "P0D",
          "shift": null,
          "color": "string",
          "lineStyle": "plain",
          "lineTension": true,
          "lineWidth": 2,
          "stacked": false,
          "view": "bar"
        }
      ],
      "showZero": true,
      "max": null,
      "min": null
    },
    "yAxis": {
      "series": [
        {
          "type": "formula",
          "id": "string",
          "title": "string",
          "aggregationPolicy": "avg",
          "formula": "string",
          "quantityType": "string",
          "timestep": "P0D",
          "shift": null,
          "color": "string",
          "lineStyle": "plain",
          "lineTension": true,
          "lineWidth": 2,
          "stacked": false,
          "view": "bar",
          "decimals": null
        }
      ],
      "showZero": true,
      "max": null,
      "min": null
    }
  },
  "options": {
    "view": "line",
    "viewSwitch": [
      "string"
    ],
    "cumulative": null,
    "monotonous": {
      "state": "disabled",
      "showToggle": false,
      "useRawData": false,
      "filterNullValues": false
    },
    "hideComments": false,
    "showLegend": true
  },
  "title": "string",
  "type": "timeseries"
}

Properties

Name	Type	Required	Description
data	object	No	No description
» comparisons	[ComparisonConfiguration]	No	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» groupBy	SimpleGroupBy	No	Groups the series by month, week, hour, day of week or or day of the year
» timestep	ExportTimestepNullable	No	No description
» y2Axis	any	No	No description

allOf

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» series	[allOf]	No	No description

allOf - discriminator: type

Name	Type	Required	Description
»»»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»»»» *anonymous*	ChartDatasetProperties	No	No description

continued

Name	Type	Required	Description
»»» showZero	boolean	No	display zero on axis

and

Name	Type	Required	Description
»» *anonymous*	AxisConfigurationBase	No	No description

continued

Name	Type	Required	Description
» yAxis	any	No	No description

allOf

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» series	[allOf]	No	No description

allOf - discriminator: type

Name	Type	Required	Description
»»»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»»»» *anonymous*	ChartDatasetProperties	No	No description

and

Name	Type	Required	Description
»»»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
»»» showZero	boolean	No	display zero on axis

and

Name	Type	Required	Description
»» *anonymous*	AxisConfigurationBase	No	No description

continued

Name	Type	Required	Description
» options	any	No	No description

allOf

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» view	string	No	Type of chart
»»» viewSwitch	[string]	No	List of chart types displayed in the type toggle
»»» cumulative	CumulativeConfiguration	No	Options of the cumulative option
»»» monotonous	object	No	Options of the monotonous option
»»»» state	string	No	Monotonous mode
»»»» showToggle	boolean	No	Whether a toggle button is displayed to switch the monotonous mode
»»»» useRawData	boolean	No	Whether use the raw Data
»»»» filterNullValues	boolean	No	Whether filter null values
»»» hideComments	boolean	No	Hide comments

and

Name	Type	Required	Description
»» *anonymous*	ChartOptionsBase	No	No description

continued

Name	Type	Required	Description
» title	string	No	No description
» type	string	Yes	No description

Enumerated Values

Property	Value
view	line
view	area
view	stacked-area
view	bar
view	stacked-bar
view	step
view	area-step
view	stacked-step
view	stacked-area-step
view	scatter
view
state	disabled
state	ascending
state	descending
type	timeseries

TimeseriesData

{
  "date": "2024-07-08T13:12:01Z",
  "meterId": "string",
  "quantity": 0
}

Properties

Name	Type	Required	Description
date	string(date-time)	Yes	No description
meterId	string(uuid)	Yes	No description
quantity	any	Yes	No description

oneOf

Name	Type	Required	Description
» *anonymous*	number	No	No description

xor

Name	Type	Required	Description
» *anonymous*	string	No	No description

TimeseriesDataParamForDeletion

[
  {
    "date": "2024-07-08T13:12:01Z",
    "meterId": "string"
  }
]

Properties

Name	Type	Required	Description
date	string(date-time)	Yes	No description
meterId	string(uuid)	Yes	No description

TimeseriesDetailExport

{
  "creationDate": "2024-07-08T13:12:01Z",
  "date": "2024-07-08T13:12:01Z",
  "deletionDate": "2024-07-08T13:12:01Z",
  "isText": true,
  "quantity": 0,
  "status": "active",
  "textQuantity": "string"
}

Properties

Name	Type	Required	Description
creationDate	string(date-time)	No	UTC date as ISO8601
date	string(date-time)	No	UTC date as ISO8601
deletionDate	string(date-time)	No	UTC date as ISO8601
isText	boolean	No	* set to true if the imported quantity can not be converted to a numeric value. As consequence,the textQuantity field is used for alphanum meters, and this point is ignored for numeric meters. * set to null otherwise
quantity	number	No	The numeric value of the point
status	string	No	Status of the point: * active - The point is the point to use when requesting the data * deleted - The point has been deleted or replaced
textQuantity	string	No	A text quantity

Enumerated Values

Property	Value
status	active
status	deleted

TimeseriesExport

{
  "date": "2024-07-08T13:12:01Z",
  "quantity": 0
}

Properties

Name	Type	Required	Description
date	string(date-time)	Yes	UTC date as ISO8601
quantity	any	Yes	Use dot as decimal separator

oneOf

Name	Type	Required	Description
» *anonymous*	number	No	No description

xor

Name	Type	Required	Description
» *anonymous*	string	No	No description

TimeseriesTableConfiguration

{
  "type": "object",
  "properties": {
    "data": {
      "type": "object",
      "properties": {
        "comparisons": {
          "type": "array",
          "items": {
            "type": "object",
            "properties": {
              "offset": {
                "description": "Offset of the comparison range. For instance, `-1` will display the previous date range.\n",
                "type": "integer",
                "examples": [
                  -1
                ]
              },
              "type": {
                "enum": [
                  "relative"
                ]
              },
              "alignDayOfWeek": {
                "description": "Enable or not the alignment of day of week",
                "type": "boolean",
                "default": false
              }
            },
            "required": [
              "type"
            ]
          }
        },
        "dateRange": {
          "oneOf": [
            {
              "type": "object",
              "properties": {
                "offset": {
                  "anyOf": [
                    {
                      "type": "integer",
                      "minimum": -1,
                      "maximum": 0
                    },
                    {
                      "type": "array",
                      "minLength": 2,
                      "maxLength": 2,
                      "items": {
                        "type": "number",
                        "minimum": -6,
                        "maximum": 1
                      }
                    }
                  ]
                },
                "type": {
                  "type": "string",
                  "enum": [
                    "relative"
                  ]
                },
                "unit": {
                  "type": [
                    "string",
                    "null"
                  ],
                  "enum": [
                    "day",
                    "week",
                    "month",
                    "year"
                  ]
                }
              },
              "required": [
                "type",
                "unit",
                "offset"
              ]
            },
            {
              "type": "object",
              "properties": {
                "endDate": {
                  "description": "End date to retrieve  widget's data (as ISO8601) (excluded)",
                  "type": "string",
                  "format": "date-time",
                  "examples": [
                    "2018-01-01T01:00:00Z"
                  ]
                },
                "startDate": {
                  "description": "Start date to retrieve widget's data (as ISO8601) (included)",
                  "type": "string",
                  "format": "date-time",
                  "examples": [
                    "2018-01-01T03:00:00Z"
                  ]
                },
                "type": {
                  "type": "string",
                  "enum": [
                    "custom"
                  ]
                }
              },
              "required": [
                "startDate",
                "endDate"
              ],
              "title": "WidgetDateRangeCustom"
            },
            {
              "description": "Date range relative to the Dashboard date range",
              "type": "object",
              "properties": {
                "type": {
                  "type": "string",
                  "enum": [
                    "before",
                    "full",
                    "since-start"
                  ]
                },
                "unit": {
                  "type": "string",
                  "enum": [
                    "day",
                    "week",
                    "month",
                    "year"
                  ]
                }
              },
              "required": [
                "type",
                "unit"
              ],
              "title": "WidgetDateRangeDashboardRelative"
            },
            {
              "type": [
                "string",
                "null"
              ]
            }
          ]
        },
        "groupBy": {
          "description": "Groups the series by month, week, hour, day of week or or day of the year",
          "type": [
            "string",
            "null"
          ],
          "enum": [
            "hour",
            "week",
            "dayOfWeek",
            "dayOfYear",
            "month",
            null
          ],
          "examples": [
            "hour"
          ]
        },
        "series": {
          "type": "array",
          "items": {
            "allOf": [
              {
                "oneOf": [
                  {
                    "description": "Serie of values defined by a formula",
                    "properties": {
                      "type": {
                        "type": "string",
                        "enum": [
                          "formula"
                        ]
                      }
                    },
                    "allOf": [
                      {
                        "type": "object",
                        "properties": {
                          "id": {
                            "description": "The id of the dataset",
                            "type": "string",
                            "format": "uuid"
                          },
                          "title": {
                            "description": "Title used to name the dataset in the widget. If not defined, the native name of the dataset will be used.\n",
                            "type": "string"
                          }
                        },
                        "required": [
                          "id"
                        ]
                      },
                      {
                        "type": "object",
                        "required": [
                          "type"
                        ],
                        "properties": {
                          "aggregationPolicy": {
                            "description": "Override the aggregation policy of the meter",
                            "type": "string",
                            "enum": [
                              "avg",
                              "count",
                              "max",
                              "min",
                              "sum",
                              "stddev",
                              "stddev_pop",
                              "stddev_samp",
                              "variance",
                              "var_pop",
                              "var_samp",
                              "median"
                            ]
                          },
                          "formula": {
                            "description": "Formula (Required if using formula)",
                            "type": "string"
                          },
                          "quantityType": {
                            "description": "Type of values in meter data",
                            "type": "string"
                          },
                          "timestep": {
                            "oneOf": [
                              {
                                "description": "Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y",
                                "type": "string",
                                "default": "P0D",
                                "pattern": "^P(?!$)(\\d+Y)?(\\d+M)?(\\d+W)?(\\d+D)?(T(?=\\d)(\\d+H)?(\\d+M)?(\\d+S)?)?$"
                              },
                              {
                                "type": "null"
                              }
                            ]
                          },
                          "shift": {
                            "description": "Shift of the formula",
                            "type": [
                              "string",
                              "null"
                            ]
                          },
                          "color": {
                            "description": "Formula's color",
                            "type": [
                              "string",
                              "null"
                            ],
                            "examples": [
                              "#34af12"
                            ]
                          },
                          "type": {
                            "type": "string",
                            "enum": [
                              "formula"
                            ]
                          }
                        }
                      }
                    ],
                    "required": [
                      "type"
                    ]
                  },
                  {
                    "type": "object",
                    "properties": {
                      "type": {
                        "type": "string",
                        "enum": [
                          "meter"
                        ]
                      }
                    },
                    "allOf": [
                      {
                        "type": "object",
                        "properties": {
                          "id": {
                            "description": "The id of the dataset",
                            "type": "string",
                            "format": "uuid"
                          },
                          "title": {
                            "description": "Title used to name the dataset in the widget. If not defined, the native name of the dataset will be used.\n",
                            "type": "string"
                          }
                        },
                        "required": [
                          "id"
                        ]
                      },
                      {
                        "type": "object",
                        "required": [
                          "meterId"
                        ],
                        "properties": {
                          "meterId": {
                            "description": "ID of the meter",
                            "type": "string",
                            "format": "uuid",
                            "examples": [
                              "caa8b54a-eb5e-4134-8ae2-a3946a428ec7"
                            ]
                          },
                          "unit": {
                            "description": "Unit used to display meter values",
                            "type": [
                              "string",
                              "null"
                            ],
                            "examples": [
                              "kg"
                            ]
                          }
                        }
                      }
                    ],
                    "required": [
                      "type"
                    ]
                  },
                  {
                    "properties": {
                      "type": {
                        "type": "string",
                        "enum": [
                          "variable"
                        ]
                      }
                    },
                    "allOf": [
                      {
                        "type": "object",
                        "properties": {
                          "id": {
                            "description": "The id of the dataset",
                            "type": "string",
                            "format": "uuid"
                          },
                          "title": {
                            "description": "Title used to name the dataset in the widget. If not defined, the native name of the dataset will be used.\n",
                            "type": "string"
                          }
                        },
                        "required": [
                          "id"
                        ]
                      },
                      {
                        "type": "object",
                        "required": [
                          "variableId",
                          "type"
                        ],
                        "properties": {
                          "variableId": {
                            "description": "ID of the variable",
                            "type": "string",
                            "format": "uuid",
                            "examples": [
                              "9c395f5c-3bc0-4f27-9c47-c7ebd71ae246"
                            ]
                          },
                          "type": {
                            "description": "type of the data",
                            "type": "string",
                            "enum": [
                              "variable"
                            ]
                          },
                          "unit": {
                            "description": "Unit used to display variable values",
                            "type": [
                              "string",
                              "null"
                            ],
                            "examples": [
                              "kg"
                            ]
                          }
                        }
                      }
                    ],
                    "required": [
                      "type"
                    ]
                  }
                ],
                "discriminator": {
                  "propertyName": "type"
                }
              },
              {
                "type": "object",
                "properties": {
                  "decimals": {
                    "description": "Number of decimals used to display dataset values",
                    "type": [
                      "number",
                      "null"
                    ],
                    "maximum": 9,
                    "minimum": 0
                  }
                }
              }
            ]
          }
        },
        "timestep": {
          "oneOf": [
            {
              "description": "Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y",
              "type": "string",
              "default": "P0D",
              "pattern": "^P(?!$)(\\d+Y)?(\\d+M)?(\\d+W)?(\\d+D)?(T(?=\\d)(\\d+H)?(\\d+M)?(\\d+S)?)?$"
            },
            {
              "type": "null"
            }
          ]
        }
      },
      "required": [
        "series"
      ]
    },
    "options": {
      "allOf": [
        {
          "type": "object",
          "properties": {
            "dateFormat": {
              "description": "Format used to display dates",
              "type": [
                "string",
                "null"
              ],
              "default": null,
              "examples": [
                "MMM YYYY"
              ]
            },
            "cumulative": {
              "description": "Options of the cumulative option",
              "type": [
                "object",
                "null"
              ],
              "properties": {
                "enabled": {
                  "description": "Whether data is shown as cumulated",
                  "type": "boolean",
                  "default": false
                }
              }
            }
          }
        },
        {
          "type": [
            "object",
            "null"
          ],
          "description": "Configuration of the conditional formatting",
          "properties": {
            "enabled": {
              "type": "boolean"
            },
            "rules": {
              "type": "object",
              "additionalProperties": {
                "items": {
                  "type": "object",
                  "properties": {
                    "bgColor": {
                      "type": "string",
                      "examples": [
                        "#c5f6fa"
                      ]
                    },
                    "iconColor": {
                      "type": "string",
                      "examples": [
                        "#1864ab"
                      ]
                    },
                    "iconCss": {
                      "type": "string"
                    },
                    "id": {
                      "description": "ID of the rule",
                      "type": "string",
                      "format": "uuid",
                      "examples": [
                        "9c395f5c-3bc0-4f27-9c47-c7ebd71ae246"
                      ]
                    },
                    "operator": {
                      "type": "string",
                      "enum": [
                        ">",
                        ">=",
                        "<",
                        "<=",
                        "="
                      ]
                    },
                    "textColor": {
                      "type": "string",
                      "examples": [
                        "#0b7285"
                      ]
                    },
                    "threshold": {
                      "type": "number"
                    }
                  },
                  "required": [
                    "threshold",
                    "operator",
                    "id"
                  ]
                },
                "type": "array"
              },
              "propertyNames": {
                "format": "uuid"
              }
            }
          }
        },
        {
          "type": "object",
          "properties": {
            "columnState": {
              "description": "Columns state",
              "type": [
                "array",
                "null"
              ],
              "items": {
                "type": "object"
              }
            },
            "filterNullValues": {
              "description": "Whether filter null values",
              "type": "boolean",
              "default": false
            },
            "showColumnHeaders": {
              "description": "Whether the column headers should be displayed",
              "type": "boolean",
              "default": true
            },
            "showSidebar": {
              "description": "Whether the sidebar should be displayed",
              "type": "boolean",
              "default": false
            },
            "showUnitInHeaders": {
              "description": "Whether the column headers should display unit",
              "type": "boolean",
              "default": false
            },
            "sortState": {
              "description": "Sort state",
              "type": [
                "array",
                "null"
              ],
              "items": {
                "type": "object"
              }
            },
            "transpose": {
              "description": "Whether the rows and columns should be transposed",
              "type": "boolean",
              "default": false
            }
          }
        }
      ]
    },
    "title": {
      "type": "string"
    },
    "type": {
      "type": "string",
      "enum": [
        "timeseries-table"
      ]
    }
  },
  "required": [
    "type",
    "data"
  ]
}

Properties

Name	Type	Required	Description
data	object	Yes	No description
» comparisons	[ComparisonConfiguration]	No	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» groupBy	SimpleGroupBy	No	Groups the series by month, week, hour, day of week or or day of the year
» series	[allOf]	Yes	No description

allOf - discriminator: type

Name	Type	Required	Description
»» *anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»» *anonymous*	DashboardVariableDataset	No	No description

and

Name	Type	Required	Description
»» *anonymous*	DatasetDecimals	No	No description

continued

Name	Type	Required	Description
» timestep	ExportTimestepNullable	No	No description
options	any	No	No description

allOf

Name	Type	Required	Description
» *anonymous*	object	No	No description
»» dateFormat	string,null	No	Format used to display dates
»» cumulative	CumulativeConfiguration	No	Options of the cumulative option

and

Name	Type	Required	Description
» *anonymous*	object,null	No	Configuration of the conditional formatting
»» enabled	boolean	No	No description
»» rules	object	No	No description
»»» **additionalProperties**	[ConditionalFormattingRule]	No	No description

and

Name	Type	Required	Description
»» *anonymous*	TableOptionsBase	No	No description

continued

Name	Type	Required	Description
» title	string	No	No description
» type	string	Yes	No description

Enumerated Values

Property	Value
type	timeseries-table

Token

{
  "token": "string"
}

Properties

Name	Type	Required	Description
token	string	No	JWT token

TrendLineBase

{
  "color": "string",
  "id": "string",
  "title": null
}

Properties

Name	Type	Required	Description
color	string	Yes	No description
id	string(uuid)	Yes	No description
title	null,string	No	No description

TrendLineCustom

{
  "type": "equation",
  "color": "string",
  "id": "string",
  "title": null,
  "equation": "string"
}

Properties

Name	Type	Required	Description
type	string	Yes	No description

allOf

Name	Type	Required	Description
*anonymous*	TrendLineBase	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» equation	string	Yes	No description

Enumerated Values

Property	Value
type	equation

TrendLineLinear

{
  "type": "linear",
  "color": "string",
  "id": "string",
  "title": null,
  "locked": true,
  "lockedParams": {
    "endDate": "2024-07-08T13:12:01Z",
    "startDate": "2024-07-08T13:12:01Z",
    "timestep": "P0D",
    "timezone": "UTC",
    "equation": "string",
    "name": "string",
    "r2": 0
  },
  "serieId": "string"
}

Properties

Name	Type	Required	Description
type	string	Yes	No description

allOf

Name	Type	Required	Description
*anonymous*	TrendLineBase	No	No description

and

Name	Type	Required	Description
*anonymous*	TrendLineLocked	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» serieId	string(uuid)	Yes	No description

Enumerated Values

Property	Value
type	linear

TrendLineLocked

{
  "locked": true,
  "lockedParams": {
    "endDate": "2024-07-08T13:12:01Z",
    "startDate": "2024-07-08T13:12:01Z",
    "timestep": "P0D",
    "timezone": "UTC",
    "equation": "string",
    "name": "string",
    "r2": 0
  }
}

Properties

oneOf

Name	Type	Required	Description
*anonymous*	object	No	Whether locked is enabled
» locked	boolean	No	No description
» lockedParams	object	Yes	No description

allOf

Name	Type	Required	Description
»» *anonymous*	ExportRange	No	No description

and

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» timestep	ExportTimestep	No	Aggregate data on duration range (as ISO8601/Durations). Limitation : Over a period of a month, allowed timestep are P1M, P3M and P1Y
»»» timezone	string	No	timezone

and

Name	Type	Required	Description
»» *anonymous*	PolynomialRegression	No	No description

xor

Name	Type	Required	Description
» *anonymous*	object	No	Whether locked is disabled
»» locked	boolean	No	No description
»» lockedParams	object	No	No description

Enumerated Values

Property	Value
locked	true
locked	false

TrendLinePolynomial

{
  "type": "polynomial",
  "color": "string",
  "id": "string",
  "title": null,
  "locked": true,
  "lockedParams": {
    "endDate": "2024-07-08T13:12:01Z",
    "startDate": "2024-07-08T13:12:01Z",
    "timestep": "P0D",
    "timezone": "UTC",
    "equation": "string",
    "name": "string",
    "r2": 0
  },
  "serieId": "string",
  "degree": 2
}

Properties

Name	Type	Required	Description
type	string	Yes	No description

allOf

Name	Type	Required	Description
*anonymous*	TrendLineBase	No	No description

and

Name	Type	Required	Description
*anonymous*	TrendLineLocked	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» serieId	string(uuid)	Yes	No description
» degree	number	Yes	No description

Enumerated Values

Property	Value
type	polynomial

User

{
  "defaultConfiguration": "string",
  "email": null,
  "firstName": "string",
  "id": "string",
  "isMe": true,
  "language": "automatic",
  "lastConnectionDate": "2024-07-08T13:12:01Z",
  "lastName": "string",
  "login": "string",
  "password": "string",
  "phoneNumber": null,
  "role": "reader",
  "zendeskToken": null
}

Properties

Name	Type	Required	Description
defaultConfiguration	string	No	No description
email	string,null(email)	No	No description
firstName	string	Yes	No description
id	string(uuid)	No	No description
isMe	boolean	No	Whether the resource is the user calling the API
language	string,null	No	No description
lastConnectionDate	string(date-time)	No	No description
lastName	string	Yes	No description
login	string	Yes	No description
password	string	No	No description
phoneNumber	string,null	No	No description
role	string	No	No description
zendeskToken	null,string	No	No description

Enumerated Values

Property	Value
role	reader
role	user
role	admin
role	superAdmin

UserList

[
  {
    "defaultConfiguration": "string",
    "email": null,
    "firstName": "string",
    "id": "string",
    "isMe": true,
    "language": "automatic",
    "lastConnectionDate": "2024-07-08T13:12:01Z",
    "lastName": "string",
    "login": "string",
    "password": "string",
    "phoneNumber": null,
    "role": "reader",
    "zendeskToken": null
  }
]

Properties

Name	Type	Required	Description
*anonymous*	[User]	No	No description

WaterfallChartConfiguration

{
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "xAxis": {
      "series": [
        {
          "type": "formula",
          "id": "string",
          "title": "string",
          "aggregationPolicy": "avg",
          "formula": "string",
          "quantityType": "string",
          "timestep": "P0D",
          "shift": null,
          "color": null
        }
      ]
    },
    "yAxis": {
      "label": null
    }
  },
  "options": {
    "showTotal": true,
    "showValue": true,
    "hideZeros": false,
    "sort": null,
    "showLegend": true
  },
  "title": "string",
  "type": "waterfall-chart"
}

Properties

Name	Type	Required	Description
data	object	No	No description
» dateRange	WidgetDateRangeConfiguration	No	No description
» xAxis	any	No	No description

anyOf

Name	Type	Required	Description
»» *anonymous*	object	No	No description
»»» series	[allOf]	No	No description

oneOf

Name	Type	Required	Description
»»»» *anonymous*	DashboardFormulaDataset	No	Serie of values defined by a formula

xor

Name	Type	Required	Description
»»»» *anonymous*	DashboardMeterDataset	No	No description

xor

Name	Type	Required	Description
»»»» *anonymous*	DashboardVariableDataset	No	No description

or

Name	Type	Required	Description
»»» *anonymous*	AxisLabel	No	No description

or

Name	Type	Required	Description
»»» *anonymous*	ChartDatasetProperties	No	No description

continued

Name	Type	Required	Description
»» yAxis	any	No	No description

anyOf

Name	Type	Required	Description
»»» *anonymous*	AxisLabel	No	No description

or

Name	Type	Required	Description
»»» *anonymous*	DatasetDecimals	No	No description

or

Name	Type	Required	Description
»»» *anonymous*	DashboardStatisticDataset	No	Serie of values defined by a statistic

continued

Name	Type	Required	Description
»» options	any	No	No description

allOf

Name	Type	Required	Description
»»» *anonymous*	object	No	No description
»»»» showTotal	boolean	No	No description
»»»» showValue	boolean	No	No description
»»»» hideZeros	boolean	No	No description
»»»» sort	object,null	No	Display datasets sort by one data value
»»»»» by	any	Yes	No description

oneOf

Name	Type	Required	Description
»»»»»» *anonymous*	StatisticEnum	No	No description

xor

Name	Type	Required	Description
»»»»»» *anonymous*	string	No	No description

continued

Name	Type	Required	Description
»»»»» order	string	Yes	No description

and

Name	Type	Required	Description
»»»» *anonymous*	ChartOptionsBase	No	No description

continued

Name	Type	Required	Description
»»» title	string	No	No description
»»» type	string	Yes	No description

Enumerated Values

Property	Value
anonymous	name
order	asc
order	desc
type	waterfall-chart

Widget

{
  "options": {
    "decimals": null,
    "backgroundImageUrl": "string"
  },
  "id": "string",
  "layout": {
    "col": 0,
    "row": 0,
    "width": 1,
    "height": 1
  },
  "data": {
    "dateRange": {
      "offset": -1,
      "type": "relative",
      "unit": "day"
    },
    "series": [
      {
        "type": "formula",
        "id": "string",
        "title": "string",
        "aggregationPolicy": "avg",
        "formula": "string",
        "quantityType": "string",
        "timestep": "P0D",
        "shift": null,
        "color": "#ff5263",
        "decimals": null,
        "statistic": "sum",
        "width": 0,
        "height": 0,
        "x": 0,
        "y": 0,
        "bgColor": "#c5f6fa",
        "fontSize": "normal",
        "fontWeight": "normal",
        "italic": false,
        "underline": false
      }
    ]
  },
  "type": "synoptic"
}

Properties

Widget

Name	Type	Required	Description
Widget	any	No	Widget

allOf

Name	Type	Required	Description
*anonymous*	WidgetBase	No	Schema for commun properties of widget

and - discriminator: type

Name	Type	Required	Description
*anonymous*	any	No	No description

oneOf

Name	Type	Required	Description
» *anonymous*	SynopticConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	HistogramConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	CorrelationMatrixConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	HeatMapConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	ProportionConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	SankeyConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	ScatterConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	SpeedometerConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	StatisticConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	StatisticsChartConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	StatisticsTableConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	TextConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	TimeseriesConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	TimeseriesTableConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	RadarConfiguration	No	No description

xor

Name	Type	Required	Description
» *anonymous*	WaterfallChartConfiguration	No	No description

WidgetBase

{
  "options": {
    "decimals": null
  },
  "id": "string",
  "layout": {
    "col": 0,
    "row": 0,
    "width": 1,
    "height": 1
  }
}

Properties

WidgetBase

Name	Type	Required	Description
WidgetBase	any	No	Schema for commun properties of widget

allOf

Name	Type	Required	Description
*anonymous*	object	No	No description
» options	DatasetDecimals	No	No description

and

Name	Type	Required	Description
*anonymous*	object	No	No description
» id	string(uuid)	No	ID of the widget. This ID is optional and allows to identify a widget in the UI when a dashboard is updated.
» layout	object	No	Position of the widget in the layout
»» col	integer	Yes	No description
»» row	integer	Yes	No description
»» width	integer	Yes	No description
»» height	integer	Yes	No description

WidgetDateRangeConfiguration

{
  "offset": -1,
  "type": "relative",
  "unit": "day"
}

Properties

oneOf

Name	Type	Required	Description
*anonymous*	DateRangeRelative	No	No description

xor

Name	Type	Required	Description
*anonymous*	WidgetDateRangeCustom	No	No description

xor

Name	Type	Required	Description
*anonymous*	WidgetDateRangeDashboardRelative	No	Date range relative to the Dashboard date range

xor

Name	Type	Required	Description
*anonymous*	string,null	No	No description

WidgetDateRangeCustom

{
  "endDate": "2024-07-08T13:12:01Z",
  "startDate": "2024-07-08T13:12:01Z",
  "type": "custom"
}

Properties

WidgetDateRangeCustom

Name	Type	Required	Description
endDate	string(date-time)	Yes	End date to retrieve widget's data (as ISO8601) (excluded)
startDate	string(date-time)	Yes	Start date to retrieve widget's data (as ISO8601) (included)
type	string	No	No description

Enumerated Values

Property	Value
type	custom

WidgetDateRangeDashboardRelative

{
  "type": "before",
  "unit": "day"
}

Properties

WidgetDateRangeDashboardRelative

Name	Type	Required	Description
type	string	Yes	No description
unit	string	Yes	No description

Enumerated Values

Property	Value
type	before
type	full
type	since-start
unit	day
unit	week
unit	month
unit	year

Train

{
  "pipeline_name": "AMBprediction_prod",
  "customer_code": "arcelormittal",
  "start_date": "2018-09-01T00:00:00.000Z",
  "end_date": "2018-12-01T00:00:00.000Z",
  "x": "5bae1df7f86df200242962a2,5bae1bfaf86df20024296261,5bae1b0bf86df20024296246",
  "y": "5bae1df7f86df200242962a2",
  "y_hat": "5bae1df7f86df200242962a2",
  "extra": "{\"gradient_boosting\":{\"loss\": \"quantile\",\"alpha\":0.1}}",
  "prediction_frequency": "PT60S",
  "prediction_duration": "P3D"
}

Properties

Name	Type	Required	Description
pipeline_name	string	No	Name of the pipeline to use
customer_code	string	No	Customer code
start_date	string	No	ISODate
end_date	string	No	ISODate
x	string	No	list of identifier for x meters
y	string	No	identifier for y meter
y_hat	string	No	identifier for y_hat meter
extra	object	No	extra parameters for the pipeline execution
prediction_frequency	string	No	Interval between two auto-predictions
prediction_duration	string	No	Interval to dynamicly set up start_date and end_date in auto-predict mode

Predict

{
  "start_date": "2018-09-01T00:00:00.000Z",
  "end_date": "2018-12-01T00:00:00.000Z"
}

Properties

Name	Type	Required	Description
start_date	string	No	ISODate
end_date	string	No	ISODate

Pipeline

{
  "pipeline_name": "AMBprediction_prod",
  "id": "5d653b44d04dfe7f281ef35b",
  "customer_code": "arcelormittal",
  "version": 1,
  "last_execution": "2018-09-01T00:00:00.000Z",
  "first_execution": "2018-12-01T00:00:00.000Z",
  "train_start_date": "2018-09-01T00:00:00.000Z",
  "train_end_date": "2018-12-01T00:00:00.000Z",
  "active": "true",
  "deleted": "false"
}

Properties

Name	Type	Required	Description
pipeline_name	string	No	Name of the pipeline to use
id	string	No	internal id of the model
customer_code	string	No	Customer code
version	integer	No	Model version number
last_execution	string	No	ISODate
first_execution	string	No	ISODate
train_start_date	string	No	ISODate
train_end_date	string	No	ISODate
active	boolean	No	true if this version is used to predict
deleted	boolean	No	true of model has been deleted
